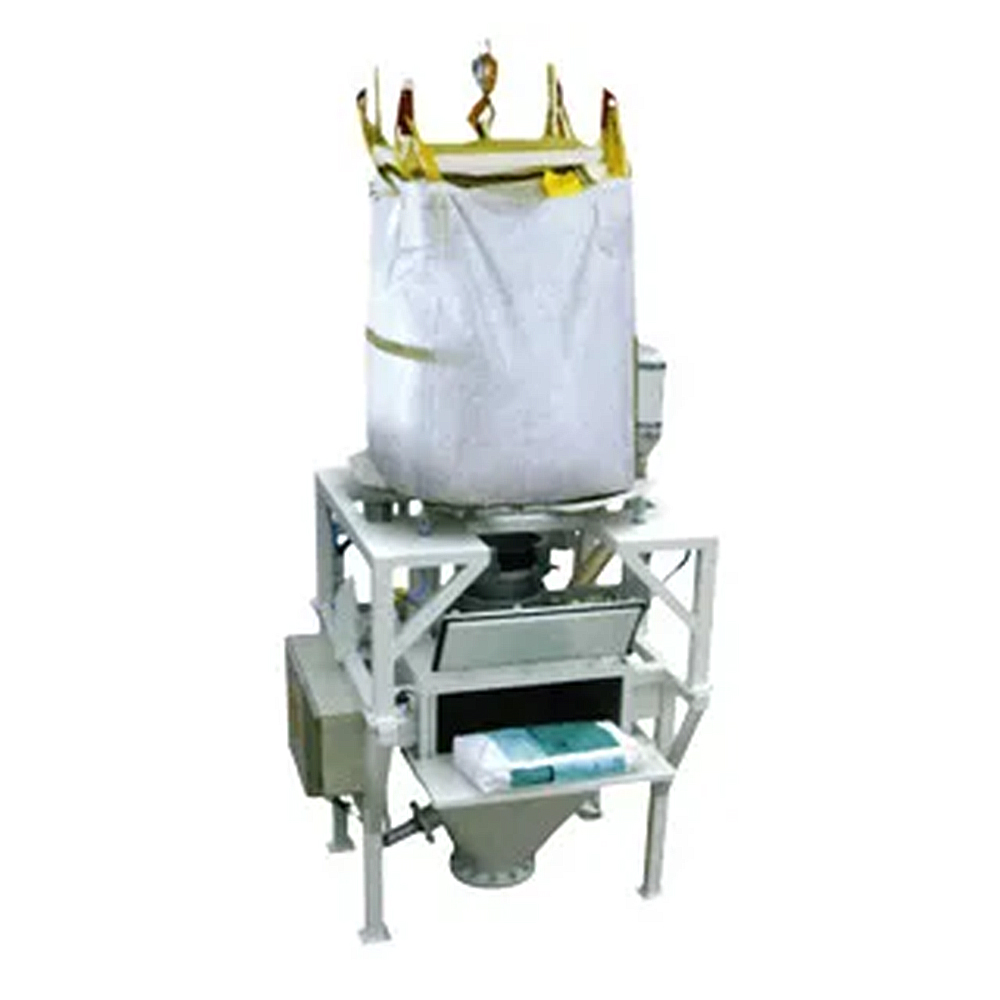

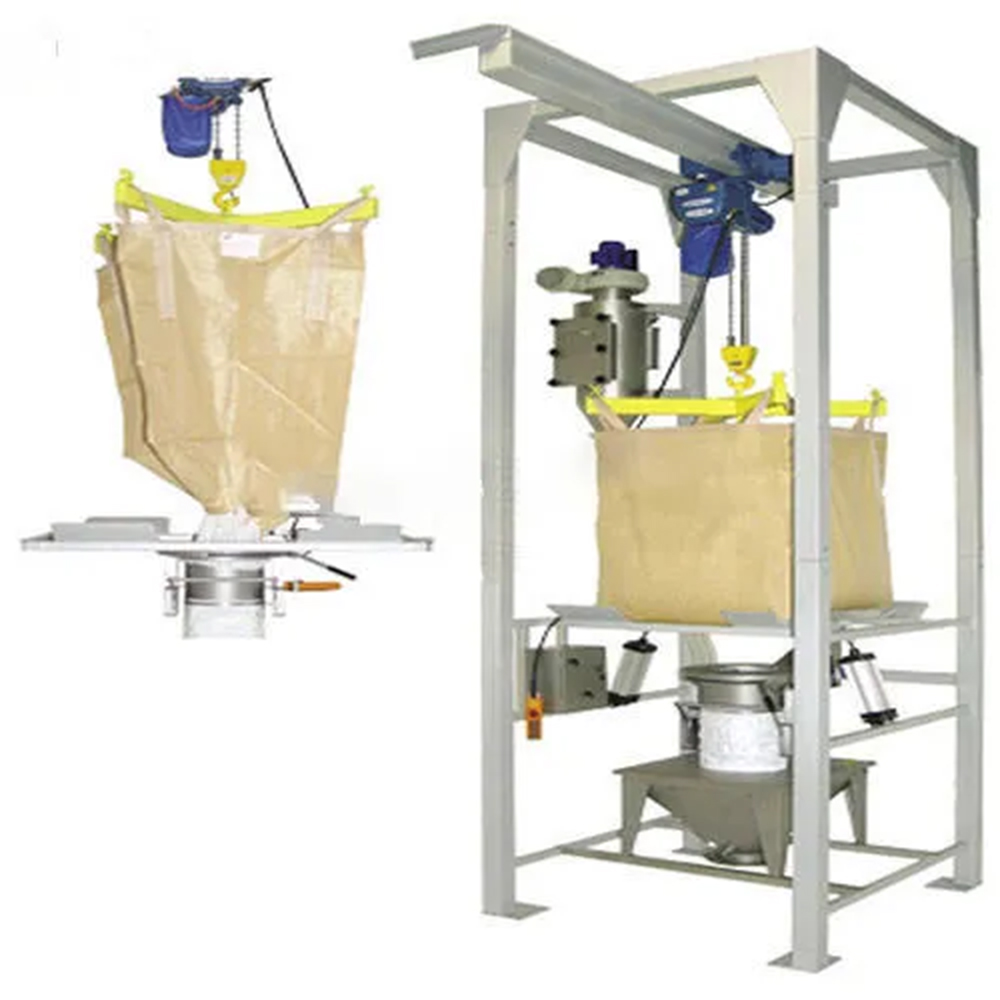

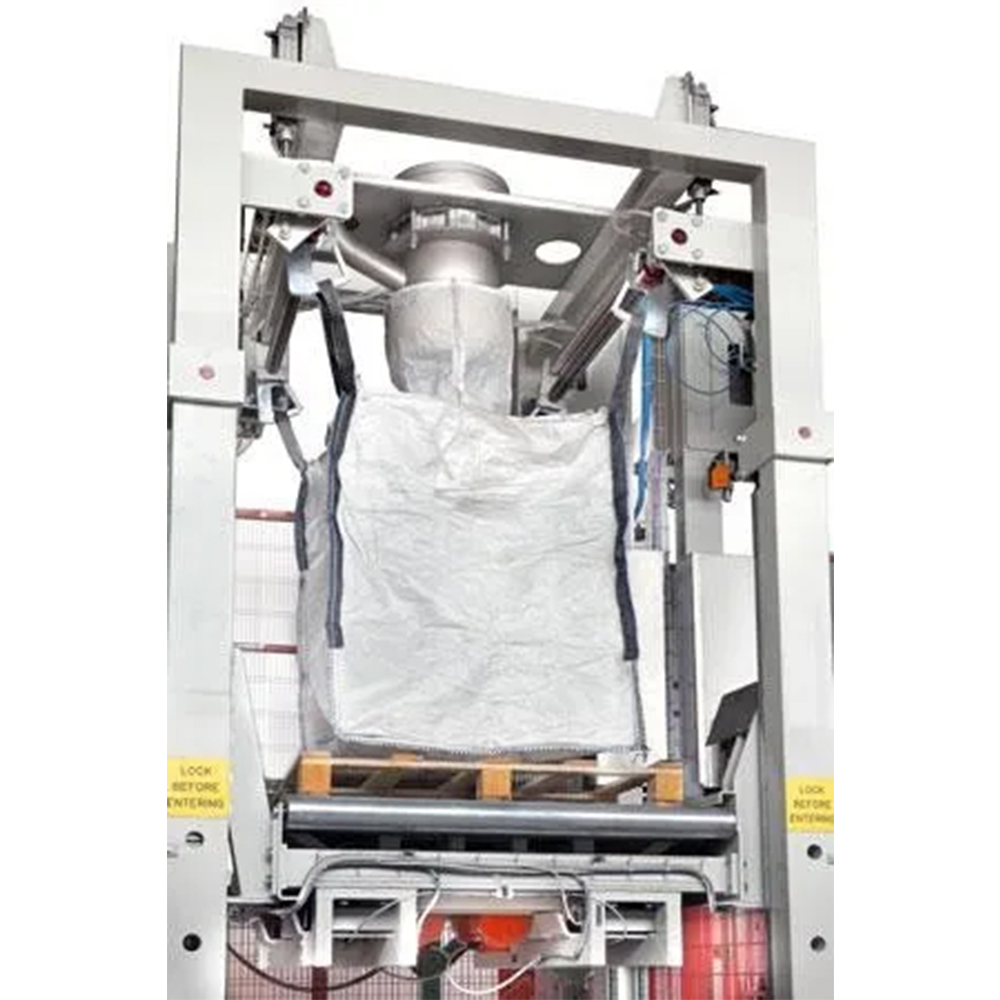

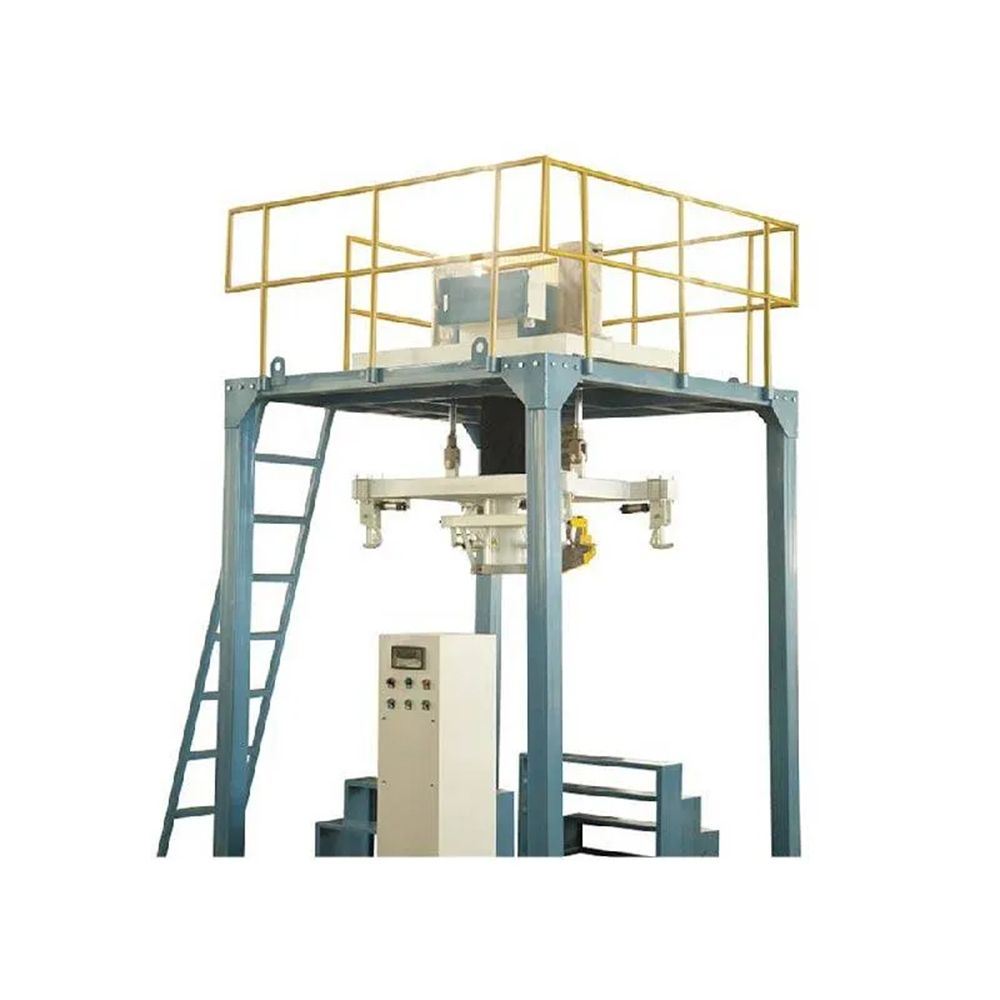

Plastic Unpacking Tonneau Device

Efficient bag unloading operation: With excellent bag unloading efficiency, it can quickly handle tonnage bag materials. Its unique design enables the tonnage bag to complete the discharging process stably and efficiently in the device, no matter granular, powdery or flaky materials, they can be discharged from the tonnage bag smoothly.

Convenient operation experience: the operation is extremely convenient, the operator can master it after simple training. The control system of the device is designed to be simple and intuitive, and the operation buttons are reasonably laid out and easy to operate.

Environmentally friendly and no dust pollution: In view of the problem of dust pollution during the process of material unpacking, the device is designed with a sealed structure and can be equipped with a dust collector. The sealing structure effectively prevents the leakage of materials during the unloading process and controls the dust inside the device.



Lifting frame load: the lifting frame has a high load-bearing capacity, generally can withstand 1 - 5 tons of weight (specific load capacity can be customized according to different models). Its sturdy structural design ensures the stability and safety when lifting fully loaded tons of bags, and it can adapt to different weight specifications of tons of bags of materials, providing a reliable foundation support for the whole unpacking operation.

Electric hoist parameters: the lifting speed of the electric hoist is usually between 4 - 12 m / min, and the lifting height can be adjusted within the range of 2 - 10 meters according to customer demand and actual site conditions.

Unloading hopper capacity and angle: The capacity of the unloading hopper is generally between 0.5 - 2 cubic meters, and its inclination angle is carefully designed to be between 45 - 60 degrees. A suitable capacity can accommodate a certain amount of discharged material, avoiding frequent cleaning of the hopper and affecting production efficiency.



Widely used in the plastics industry, it plays an important role in the process of unpacking and discharging plastic raw materials, such as the unpacking of polyethylene, polypropylene and other granular plastic raw materials, as well as the discharging of plastic additives, such as antioxidants, plasticizers and other powdery materials. It is also suitable for other powder foam, granular materials, powder and granular mixtures, flake materials unpacking occasions, such as a variety of chemical raw materials in the chemical industry, food industry, some powder or granular additives, raw materials in the pharmaceutical industry, etc., is the key equipment indispensable to the material handling links in many industries.



Before installation, it is necessary to conduct a detailed survey of the installation site to ensure that the site is flat, solid, with enough space to accommodate the tonnage bag unpacking device and its ancillary equipment, and in line with the installation requirements of the equipment. According to the characteristics of the material and production process, reasonably plan the installation position of the device to ensure smooth material transportation path.

Before the first operation, the inside of the device should be fully cleaned, and the installation and function of key components such as lifting frame, electric hoist, tonnage bag hanger, tapping device, discharging hopper and other key components should be checked to ensure that there is no damage or hidden trouble. Check the sealing structure to ensure that it is well sealed, and debug the dust collector to ensure that its dust removal effect meets the requirements.

In the process of operation, establish a regular inspection system, focusing on checking the wear and tear of each component, the sealing performance of the sealing structure, the working condition of the dust collector and so on.

Long-term out of service or seasonal out of service equipment, in the deactivation of the device should be cleaned up before the material inside the device, the internal equipment for a thorough cleaning, to prevent the material residue caking affect the next use. Carry out a comprehensive inspection and maintenance of the various components of the equipment, do a good job of anti-rust, anti-corrosion treatment, will be wearing parts properly stored.
