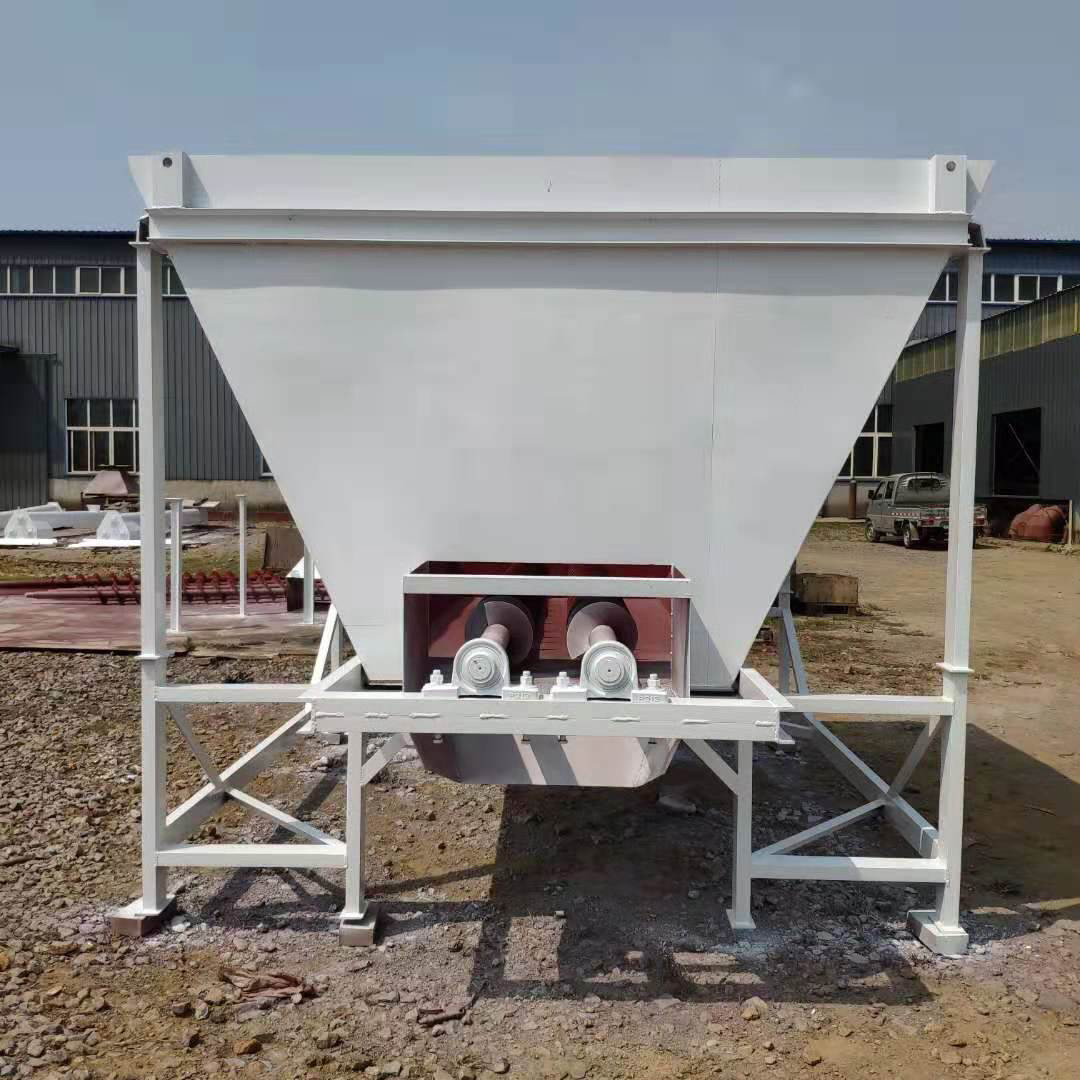

Intermediate buffer silo for the building materials industry

As an important equipment before the crusher, the buffer silo is designed to regulate the imbalance phenomenon in the production process and ensure the smoothness of the subsequent crushing process.Its unique performance characteristics are mainly reflected in the following aspects:

- Efficient material caching capacity:

The design of the buffer silo fully considers the fluctuation of material flow in the production process, and through reasonable volume design, it can meet the production cache time of 10-15 minutes.This design not only effectively alleviates the production imbalance problem caused by the difference in production capacity, but also ensures that the crusher operates in a continuous and stable working condition, improving the overall production efficiency.

- Abrasion resistance and durability:

The cone section of the buffer bin is specially fitted with a special wear-resistant liner, which has excellent abrasion and impact resistance, and is able to withstand the severe abrasion with the cone section when the ore is discharged.This design greatly extends the service life of the buffer silo, reduces the frequency of maintenance and replacement, and lowers production costs.

- flexible material control:

The bottom of the buffer silo is equipped with a bar valve, which is designed to make it easy to cut off the material flow and ensure the safety of the operators when the equipment is being serviced or maintained.At the same time, the flexible control of the bar valve also provides a convenient way to adjust the material during the production process.

- Optimized material flow:

The design of the cone angle of the buffer silo takes full consideration of the characteristics of the material, and through precise calculation and simulation, it ensures the smooth flow of the material in the silo.In addition, the cone section is equipped with anti-clogging equipment such as pneumatic arch-breaking hammers and air cannons, which are able to play a role in restoring the normal flow of materials in the event of clogging, avoiding production interruptions.

- Easy maintenance and management:

The structure of the buffer silo is reasonably designed and easy to maintain and manage.Operators can ensure the long-term stable operation of the equipment through simple operation and maintenance procedures.At the same time, the equipment has a high degree of intelligence and automation, which can monitor the material flow and equipment status in real time, providing strong support for decision-making in the production process.



- Cache time: 10-15 minutes (adjustable according to specific production needs)

- Bin shape: cylindrical or square (according to the site and material characteristics of choice)

- Wear-resistant liner material: special wear-resistant alloy steel or composite material (according to the material abrasive choice)

- Bar valve specifications: according to the material size and flow rate customized

- Cone angle design: optimized design according to material characteristics

- Anti-blocking equipment: pneumatic arch-breaking hammer, air cannon, etc. (according to the choice of material blockage)



- Buffer silo is widely used in mining, metallurgy, building materials, chemical industry and other industries, especially in ore crushing, material screening, material conveying and other processes play an important role.In the mining industry, the buffer silo can adjust the difference in production capacity between different crushing equipments to ensure the continuity and stability of the crushing process; in the metallurgical industry, it can store and adjust the supply of raw materials for blast furnace, converter and other equipments; in the building materials and chemical industry, it can ensure the smoothness and stability of the materials in the conveying and processing process.



When using a buffer silo, you need to pay attention to the following important tips:

- Regular inspection and maintenance: Regular inspection and maintenance of buffer silo ensures the normal operation and prolongs the service life of the equipment.

- Reasonable selection of wear-resistant liner: According to the abrasive and particle size characteristics of the material, reasonably select the material and thickness of the wear-resistant liner to ensure the wear resistance of the equipment.

- Optimize the cone angle design: according to the flow characteristics of the material and the accumulation angle, optimize the cone angle design to ensure the smooth flow of the material in the silo.

- Regular cleaning and maintenance: Regularly clean up the accumulation of materials and sundries in the buffer bin to keep the equipment clean and hygienic; at the same time, carry out regular maintenance on the lubrication parts of the equipment to ensure the normal operation of the equipment.

- Pay attention to safe operation: when operating the buffer silo, we should strictly abide by the safety regulations to ensure the safety of the operators.
