High-performance clinker storage and transportation silos

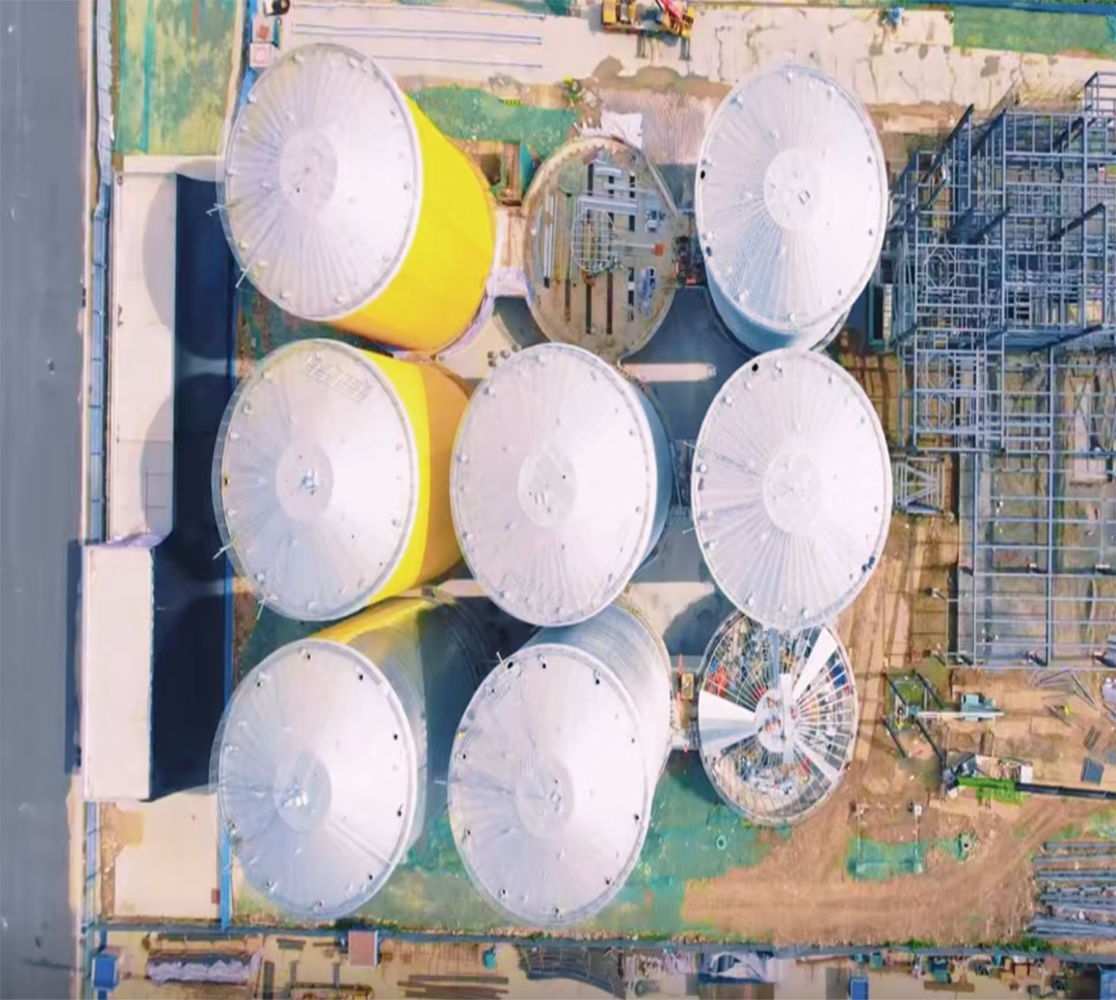

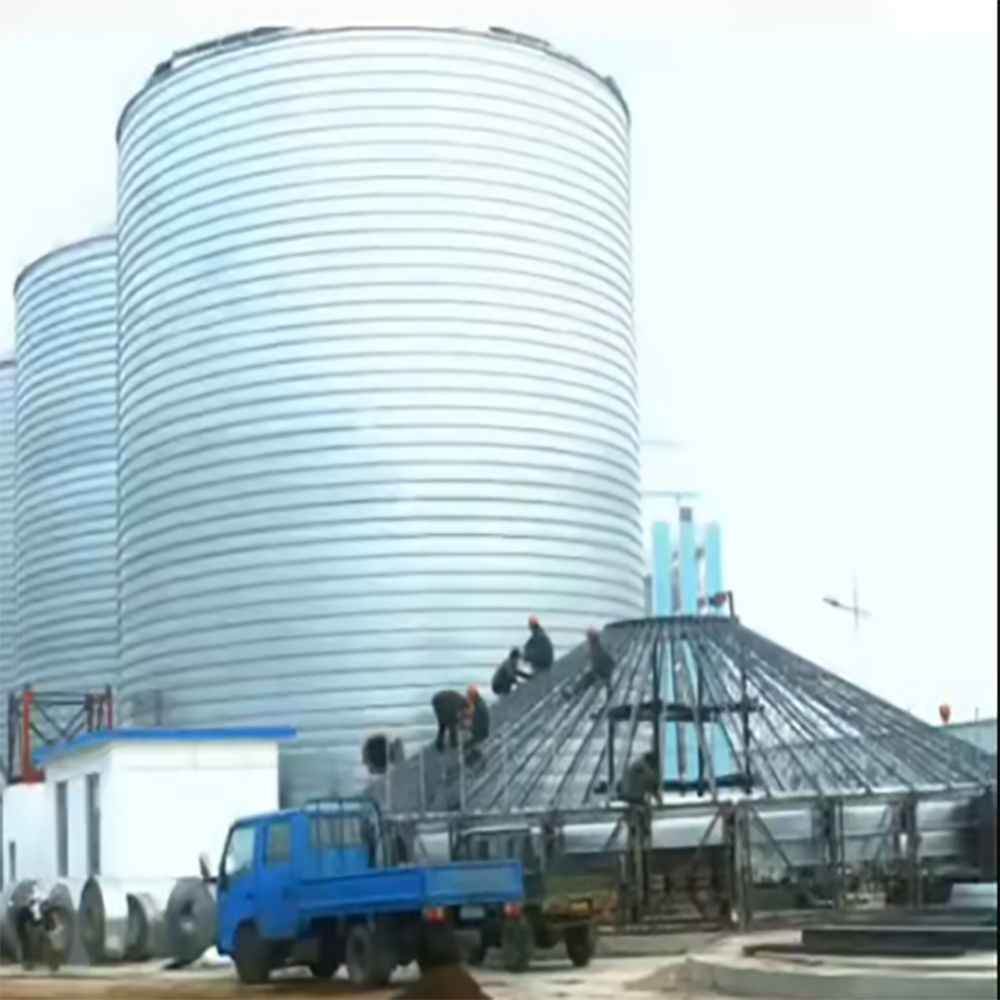

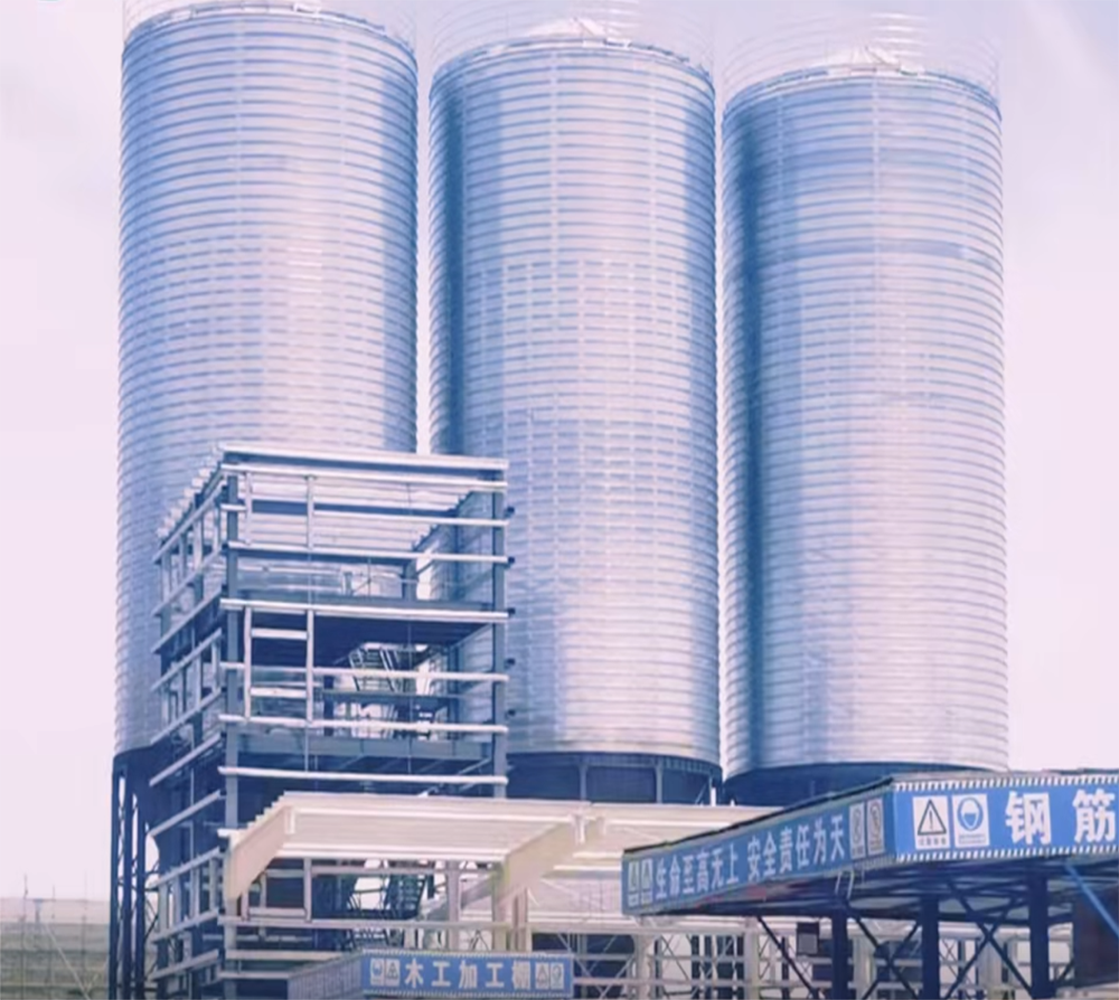

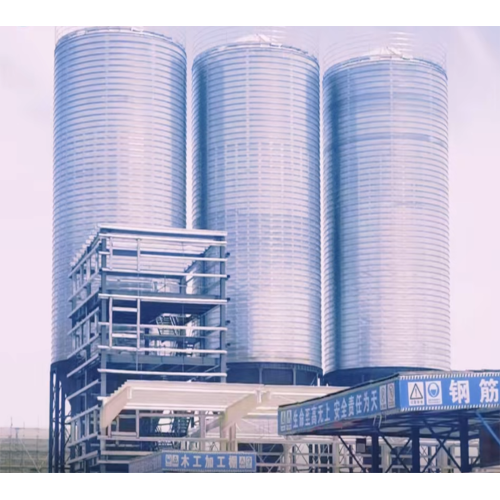

- Steel plate silo

Structure and material: the storage body is all built with steel structure, forming a solid steel plate silo structure.

Floor space: obvious advantages, small floor space, can realize the effective storage of clinker in the limited space, for the site space is more tight situation is very suitable.

Construction cycle: faster construction, short construction cycle, can be quickly put into use, to meet the demand of enterprises for storage facilities as soon as possible.

Construction costs: relatively economical, low construction costs, can to a certain extent save the cost of enterprise expenditure.

Storage capacity: the storage capacity of a single silo between 1 - 50,000 tons, according to the actual production scale and storage needs for reasonable planning and selection.

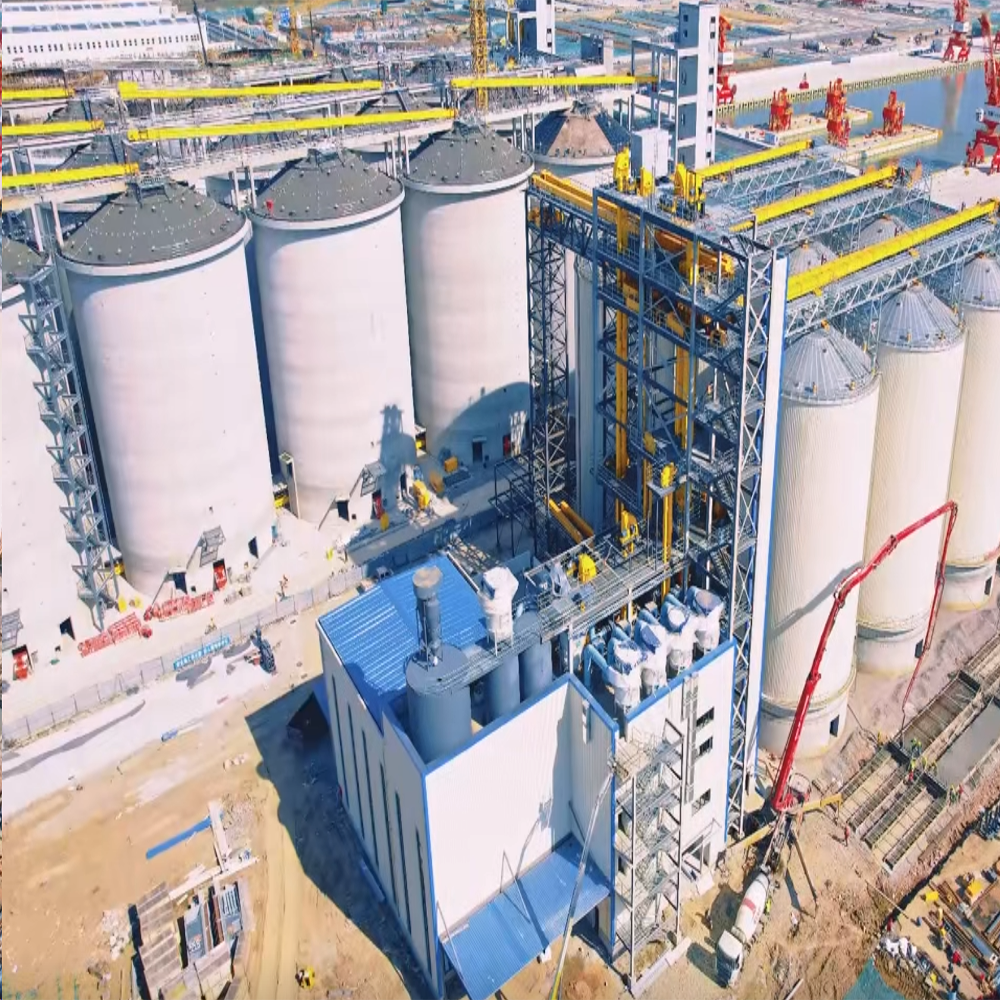

- Tall silo

Structure of silo wall and roof: The silo wall is made of reinforced concrete retaining wall, which provides solid support and protection, and the silo roof is made of mesh frame structure, which ensures the stability of the top of the silo.

Occupied area: It also features a small occupied area, which can effectively utilize the land resources.

Storage capacity of single silo: the storage capacity of single silo ranges from 1 - 100,000 tons, compared with steel plate silo, the upper limit of storage capacity of single silo is higher, which can meet the demand of clinker storage on a larger scale.

- Tent storage

Overall structure: conical in shape, consisting of a concrete retaining wall at the bottom and a steel mesh frame, the unique structural design gives it some distinct advantages.

Cooling effect: The outstanding advantage is the good cooling effect, which helps to maintain the quality of clinker in the storage process.

Foundation Requirement: Low requirement for foundation bearing capacity, it can be successfully constructed and put into use in some sites with relatively less ideal foundation conditions.



- Steel plate silo

Silo storage capacity: a clear single silo storage capacity of 1 - 5 million tons, enterprises can determine the specific size of the silo based on their own production and storage planning.

Steel structure related: involving the type of steel, strength and other parameters, these parameters ensure that the steel structure of the storage body in the weight of clinker bearing as well as to deal with a variety of environmental conditions of stability and safety, the specific parameters will be based on different design and engineering requirements.

- High wall silo

Storage capacity: the storage capacity of a single silo is between 1 - 100,000 tons. This parameter provides an important reference for enterprises to choose a high-barrel silo in order to match their own production and storage conditions.

Silo wall and roof: the reinforced concrete retaining wall of the silo wall has corresponding technical parameters in terms of thickness, strength, etc., in order to ensure the effective performance of its retaining wall function; the roof grid structure also has technical parameters about the specifications of the rods, connection methods, etc., to ensure that the roof of the silo is stable and reliable.

- Tent storage

Structural dimensions: The conical tent storage has specific dimensional parameters in terms of bottom diameter, height, etc. These parameters affect its internal space size and storage capacity.

Concrete retaining wall and net frame: the thickness and strength of the concrete retaining wall at the bottom, as well as the material and specifications of the steel net frame, are all related to the overall performance and service life of the tent storage.



- These clinker storage methods are widely used in the cement production industry. Whether it is a large cement production enterprise, or a medium-sized or small cement plant, it can choose a suitable clinker storage method according to its own site conditions, production scale, capital budget and other factors. For example, the limited site and hope to quickly build storage facilities, more sensitive to the cost of the enterprise may give priority to the steel plate silo; for a larger storage capacity needs, site is relatively abundant but also hope to better control the footprint of the enterprise, the high wall silo will be a good choice; if the enterprise is located in the site is not particularly ideal ground conditions, and the clinker cooling effect of the higher requirements, then the tent warehouse can better meet its needs. If the foundation condition of the enterprise site is not particularly ideal and has higher requirements for clinker cooling effect, then tent warehouse can better meet its needs.



- Steel plate silo

In the construction process, to ensure the welding quality of the steel structure, in strict accordance with the relevant norms and design requirements for construction, to avoid the emergence of welding is not solid and other safety hazards.

Regular anti-corrosion treatment of steel plate silo, because steel is easy to rust and corrode when exposed to air for a long time, which affects the service life of the silo and storage safety.

- High silo wall silo

The reinforced concrete construction of the silo wall should ensure the quality of concrete pouring, including the concrete proportion, vibration and other aspects should be strictly controlled to prevent cracks and other quality problems.

For the roof net frame structure, it is necessary to regularly check whether the connection parts of the rods are loose, and if there is any abnormality, timely reinforcement treatment should be carried out to ensure the stability of the roof.

- Tent storage

Pay attention to the selection and maintenance of tent materials, use reliable, durable tent materials with good fireproofing and waterproofing properties, and conduct regular inspection and maintenance, and timely replacement of aging or damaged parts.

For the concrete retaining wall at the bottom, we should pay attention to whether there is any settlement, etc. If there is any abnormality, we need to take timely measures to repair it, so as to ensure the stability of the overall structure of the tent warehouse.
