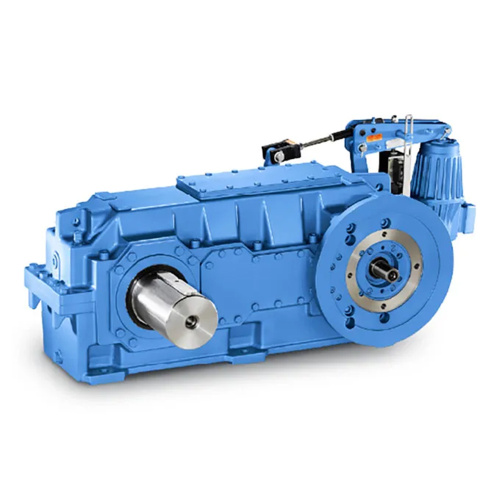

Gearboxes for Ship Unloaders

Efficient modular construction: the adoption of modular design concept makes the product compact and the layout of each component reasonable. This compactness not only saves installation space, but also improves overall mechanical efficiency.

Advanced tooth shape optimization process: Using unique gear trimming technology, the tooth profile and tooth direction are accurately corrected. During the gear meshing process, the contact state is effectively improved so that the load is evenly distributed on the tooth surface, greatly reducing shock and vibration.

Superior hardened gear quality: The gears are hardened and fully comply with high international standards such as ISO, AGMA and DIN. The hardened gear face gives the gears high strength and good wear resistance, and is able to withstand greater loads and tougher working conditions.

Multiple lubrication adaptive program: with a variety of lubrication configurations, can be flexibly selected according to the needs of different working conditions. Whether it is high temperature, high humidity or dusty and other harsh environments, it can provide appropriate lubrication to ensure that key components such as gears and bearings are well lubricated and cooled.

flexible accessory customization options: provide a variety of accessories to choose from, can meet the individual requirements of different customers. For example, you can choose to install sensors, controllers and other accessories according to the customer's needs for equipment control accuracy, operation monitoring and other aspects.



Precise speed ratio control: the range of speed ratio is from 11.2 to 50, through the reasonable selection of speed ratio, the speed of four reels can be precisely controlled, so as to realize the precise adjustment of the lifting, opening and closing and walking speed of the grab.

Reasonable center distance setting: the center distance between the two output shafts is 800 - 2,800 (mm), which can be adapted to the structural requirements of different specifications and models of bridge type grab ship unloaders.

Powerful loading and unloading capacity: Maximum loading and unloading capacity is up to 5,000 t/h. This high loading and unloading capacity reflects the powerful ability of this gearbox in large-scale harbor material loading and unloading operations.



It is mainly used in the field of bridge grab ship unloader. In the bulk cargo loading and unloading operations in the port, the bridge grab ship unloader plays a crucial role, and the planetary differential structure gearbox as its key core equipment, is responsible for the integration and distribution of the power of the hoisting motor, opening and closing motor and traveling motor. By precisely controlling the movement of the four reels, it realizes a series of actions such as grabbing, lifting, transporting and unloading of bulk cargoes such as coal, ore and grain. Its efficient operation can greatly improve the loading and unloading efficiency of the port, reduce the docking time of the ship and promote the rapid flow of port logistics, which is an indispensable and important part of the bulk cargo loading and unloading operation of the port.



Before installation, be sure to conduct a detailed survey of the installation site to ensure that the site foundation is firm and level, and meet the installation requirements of the gear box. Carefully check the suitability of the model and specification of the gear box with other parts of the bridge grab ship unloader, and operate in strict accordance with the installation instructions to ensure that the connecting parts are installed accurately, tightly and reliably, so as to prevent the equipment from vibration, offset and other abnormalities during operation due to improper installation, which will affect the performance and service life of the equipment.

Before the first operation, the gear box should be fully cleaned internally, check the installation and lubrication status of the gears, bearings, shaft seals and other key components, and refill the lubricant according to the specified oil level and oil requirements. When starting, should first carry out no-load test run, observe the operation of the equipment, check whether there is any abnormal sound, vibration, heat and other phenomena, such as abnormalities should be immediately shut down to check and troubleshooting.

During operation, establish a regular inspection system, focusing on checking the oil temperature, oil pressure, vibration, noise and other key indicators of the gear box, as well as the opening and closing of the grab, the wear and tear of the traveling track. According to the running time and working conditions of the equipment, the maintenance cycle is reasonably arranged, lubricating oil, filters and other wearing parts are replaced in time, and wear and tear tests and precision adjustments are carried out on gears, bearings and other key components.

Long-term out of service or seasonal out of service equipment, before decommissioning should do a good job of equipment cleaning, anticorrosion, rust treatment, the gear box lubricant discharge clean and properly stored. Before re-activation, it is necessary to carry out a comprehensive inspection and maintenance of the equipment, and make preparations in accordance with the requirements before the first operation, including refilling lubricating oil, checking the connection of various components, etc., to ensure that the equipment can be safely and reliably put back into operation.
