Planetary gearboxes: technological innovations and prospects for applications

December 07, 2024

Planetary Gearbox: Technical Innovation and Application Prospects Planetary gearbox is a high-precision transmission device with the advantages of compact structure, high transmission efficiency, and strong load-bearing capacity. It plays an important role in many fields such as mechanical engineering, aerospace, and automotive manufacturing. In this paper, we will introduce the principle of planetary gearbox, application areas and technical innovation, and look forward to its future development prospects.

I. Principle of planetary gearbox

Planetary gearbox is a transmission device composed of sun gear, planetary gear, inner ring gear and outer ring gear. Among them, the sun gear is located in the centre, while the planetary gear rotates around the sun gear and completes the transmission task through the interaction of the inner ring gear and the outer ring gear. This structure gives the planetary gearbox a large advantage in terms of torque output and transmission ratio.

II. Application areas of planetary gearboxes

1. Mechanical engineering field

Planetary gearboxes are widely used in all kinds of mechanical equipment, such as printing machinery, textile machinery, instruments and meters. Its compact structure and efficient transmission characteristics make these equipments more stable and reliable in the process of operation.

2. Aerospace field

Planetary gearboxes play an important role in the aerospace field. For example, in aircraft engines, planetary gearboxes are used to convert high-speed, low-torque engine output into low-speed, high-torque output, which improves the efficiency of the engine.

3. Automobile Manufacturing

With the development of the automotive industry, the planetary gearbox is more and more widely used in automotive manufacturing. Its role in the transmission is to convert the torque of the engine output into the rotating torque of the wheels to achieve vehicle acceleration and driving.

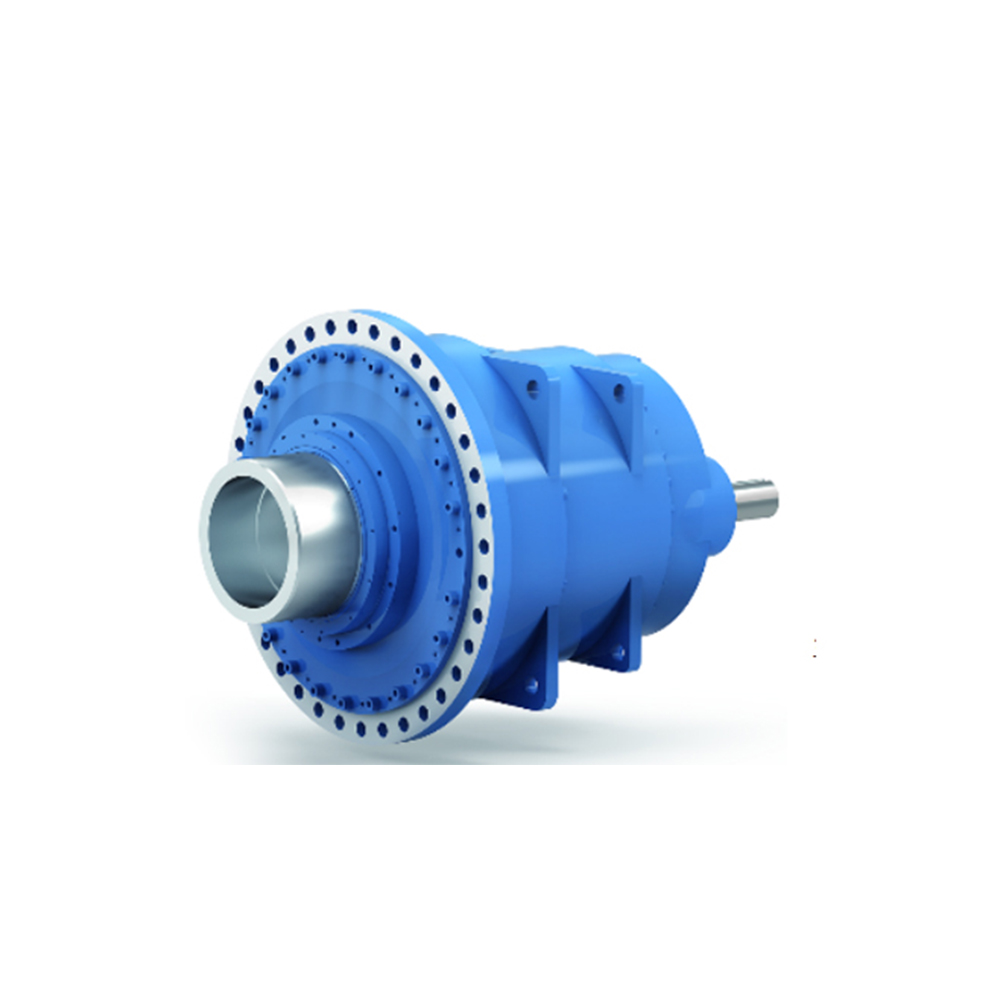

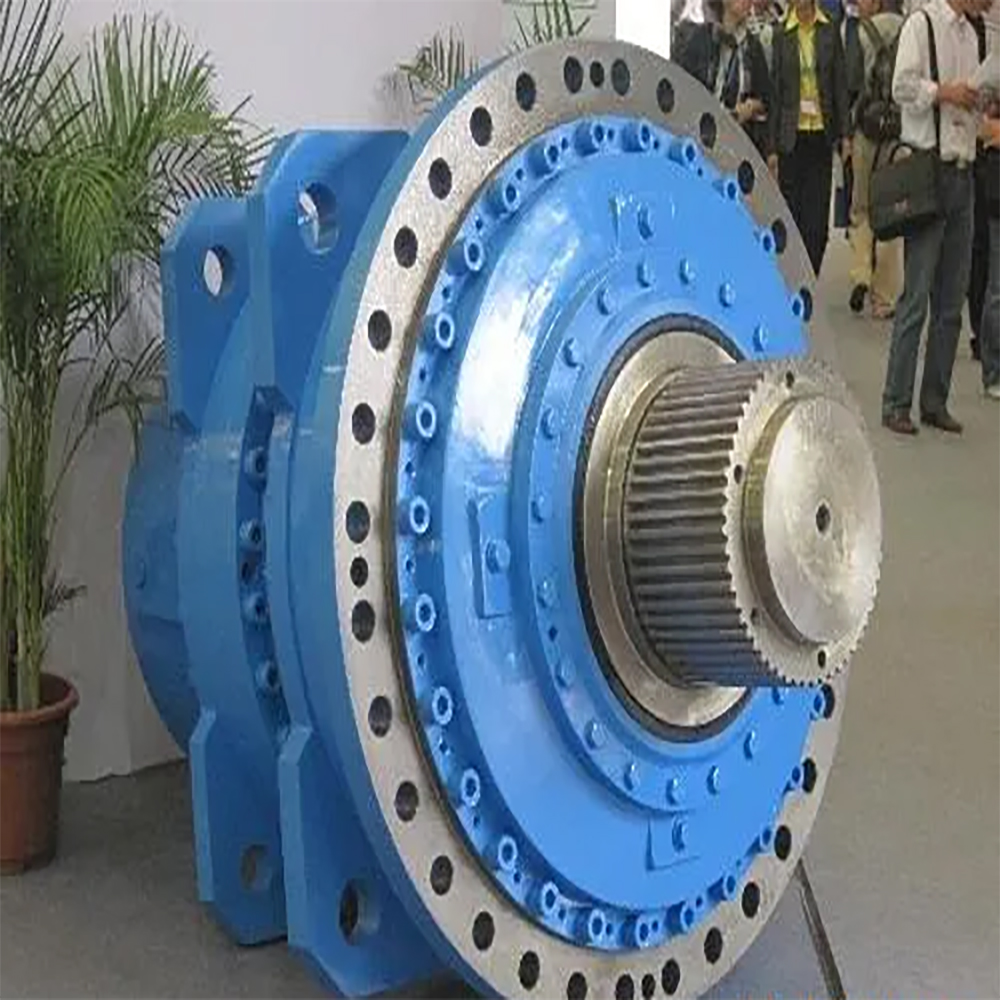

Industrial planetary standard island gearboxes

Third, the technical innovation of planetary gearbox

With the promotion of scientific and technological progress, the technology of planetary gearboxes is also constantly innovating. The following are several important directions of technological innovation:

1. Material innovation: adopting high-strength materials to improve the bearing capacity and service life of planetary gearbox.

2. Lubrication technology: Introducing advanced lubrication technology to reduce the friction loss of planetary gearbox and improve transmission efficiency.

3. Precision manufacturing technology: apply advanced CNC machining equipment and precision measurement technology to improve the machining accuracy and assembly quality of planetary gearbox.

Fourth, the application prospect of planetary gearbox

As an efficient and reliable transmission device, planetary gearbox has a broad application prospect. In the future, with the continuous promotion of industrial automation and intelligent manufacturing, the application of planetary gearboxes in the field of robotics and industrial equipment will be further expanded. Meanwhile, the trend of lightweight and miniaturisation of planetary gearboxes will continue to develop to meet the needs of emerging fields such as light electric vehicles and drones.

In the context of rapid technological development, planetary gearboxes, as a key transmission technology, will continue to lead the development of various industries. We have reason to believe that with the continuous breakthroughs and innovations in related technologies, the application fields of planetary gearboxes will be broader and make greater contributions to the progress and development of society.
