Brand: BOCH
Applicable Industry: Manufacturing Plant, Construction Works, Energy &Amp; Mining
Performance Features:

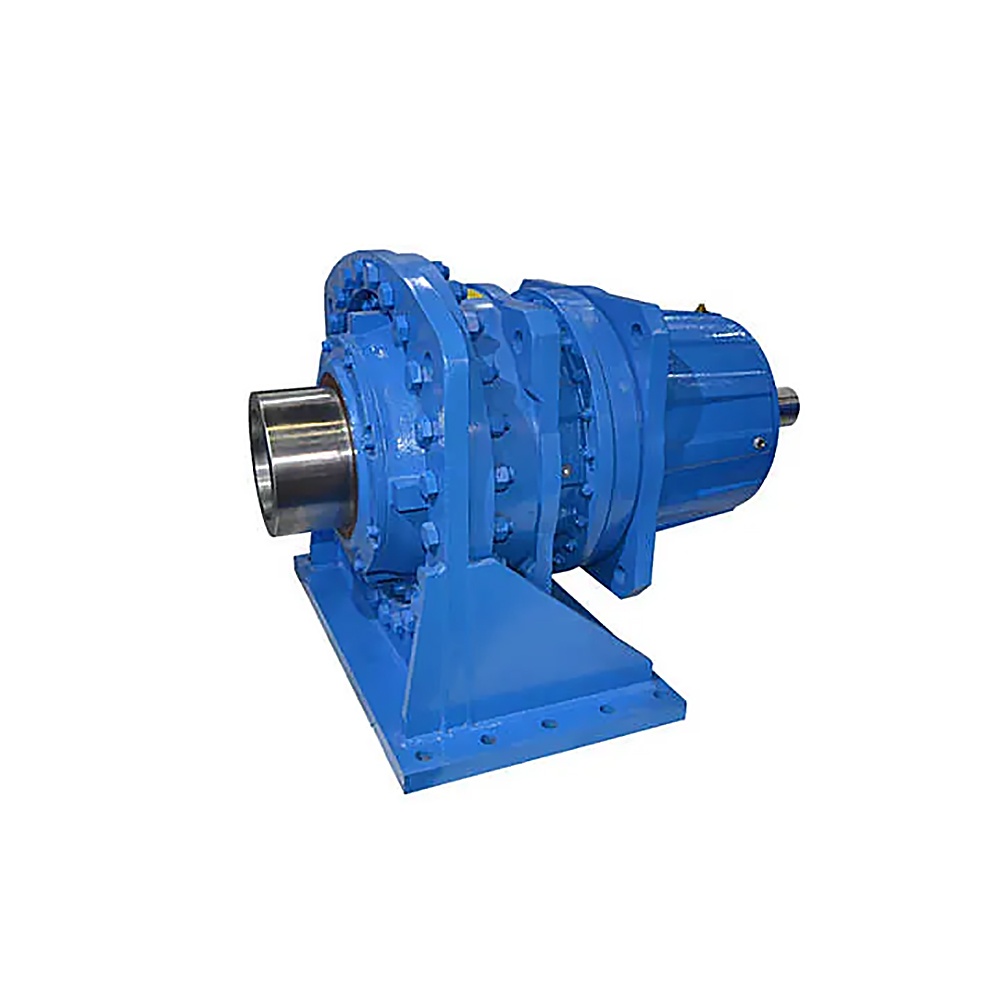

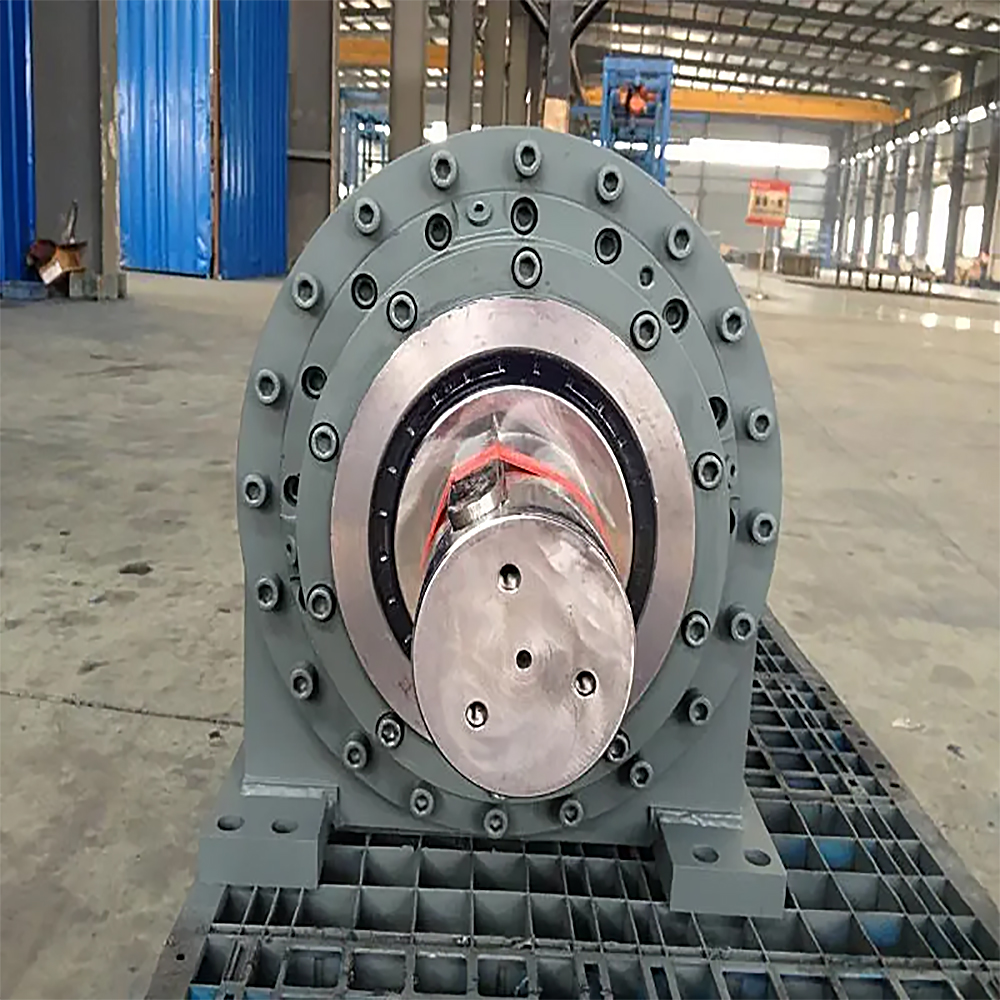

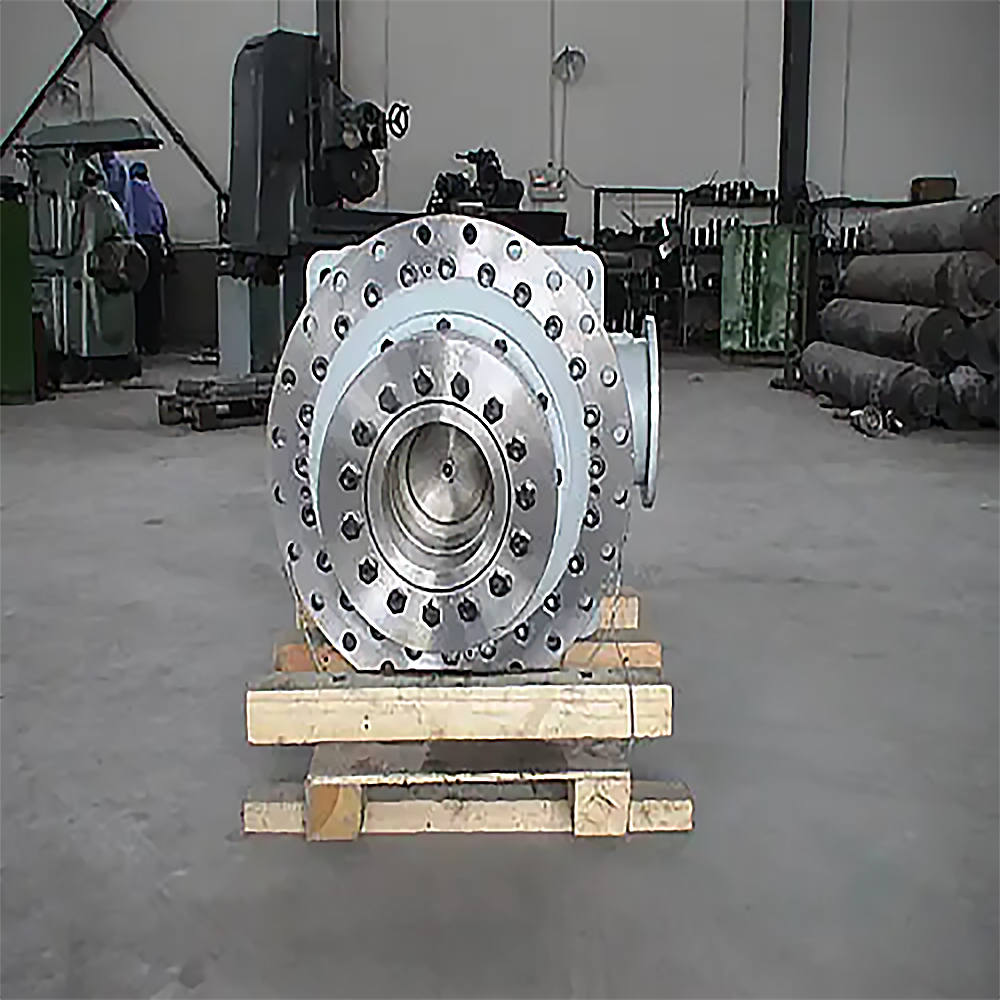

- The MPT (TM) series of vertical mill gearboxes is born from the outstanding technology of the MP industrial planetary standard gearbox platform of South High Gear. It perfectly integrates the advanced modular concept with the special design for the specific working conditions of mining spiral vertical mill, which not only shows the significant advantage of economic applicability, but also accurately adapts to a variety of complex and changing working scenarios.
- The innovative design of multi-floating load equalisation mechanism cleverly disperses the load and greatly improves the carrying capacity of the gearbox. Even in the face of heavy loads and complex stresses, the gearbox can maintain a stable operating state, ensuring the long-term reliable operation of the equipment.
- The torque range has been carefully planned and distributed, giving full consideration to mining operation scenarios of different sizes and demands, so that each model of gearbox can achieve an ideal balance between economic cost and performance performance, providing users with cost-effective choices.
- The introduction of a maintenance-free sealing structure is a key feature of the series. This design not only effectively prevents the intrusion of external impurities and internal lubricant leakage, but also greatly reduces the frequency and difficulty of maintenance work, significantly improving the ease of maintenance and service life of the product.
- The unique gear shaping technology brings qualitative improvement to the transmission process. By precisely adjusting the gear tooth shape and meshing parameters, it significantly improves the contact state between the gears, making the transmission smoother and smoother, and significantly reduces the vibration and noise in operation, creating a more comfortable and quieter working environment for the operator.
Main technical parameters:
- Torque range: Covering a wide range from 85 to 4300 (kN.m), it is able to meet the power requirements of tower mills with different specifications and load requirements, providing strong and stable torque support for mining production.
- Speed ratio range: between 22 and 70, providing users with moderate speed regulation options, which can accurately adjust the output speed according to specific process requirements and material characteristics to achieve the best grinding results.
- Installed power range: from 132 to 2250 (kW), which can be matched with various power levels of drive motors to provide sufficient and stable power source for tower mills and ensure efficient operation.
Main application areas:
- As the core component of tower mills, MPT gearboxes play a key role in the fine grinding of non-ferrous metals. Whether it is common non-ferrous metals such as copper, aluminium, zinc, or rare precious metals, the tower mill and the gearbox can work together to achieve efficient crushing and fine processing of ores, and improve the recovery rate and grade of valuable metals.
- The gearbox also excels in the mining and processing of gold ores. It is capable of grinding gold-bearing ores to the ideal particle size, creating favourable conditions for the subsequent beneficiation and extraction processes, and improving the yield and quality of gold ores.
- For non-metallic minerals, such as limestone, quartz sand, fluorite, etc., MPT series gearboxes can help tower mills to achieve precise grinding control, producing high-quality non-metallic mineral powders that meet the needs of different industries, which are widely used in the fields of construction, chemical industry, ceramics and so on.
Important Notice:
- Installation to ensure that the foundation is firm and level, and calibrate the accuracy according to the instructions.
- Before installation, check the exterior and interior, and verify that the tools and materials are complete and qualified.
- Before operation, fill the lubricant, check the lubrication and electrical system.
- Monitor the key parameters during operation, and stop the machine for abnormalities.
- Regularly check the seals and clean them, and maintain them according to the requirements.
- Disconnect the power and lock the machine before stopping for maintenance, and operate it correctly.
- Enhance the protection in harsh environment, and use genuine parts for maintenance.
- Establish a file to provide reference for management and diagnosis.
