Brand: BOCH
Applicable Industry: Manufacturing Plant, Construction Works, Energy &Amp; Mining
Performance Features:

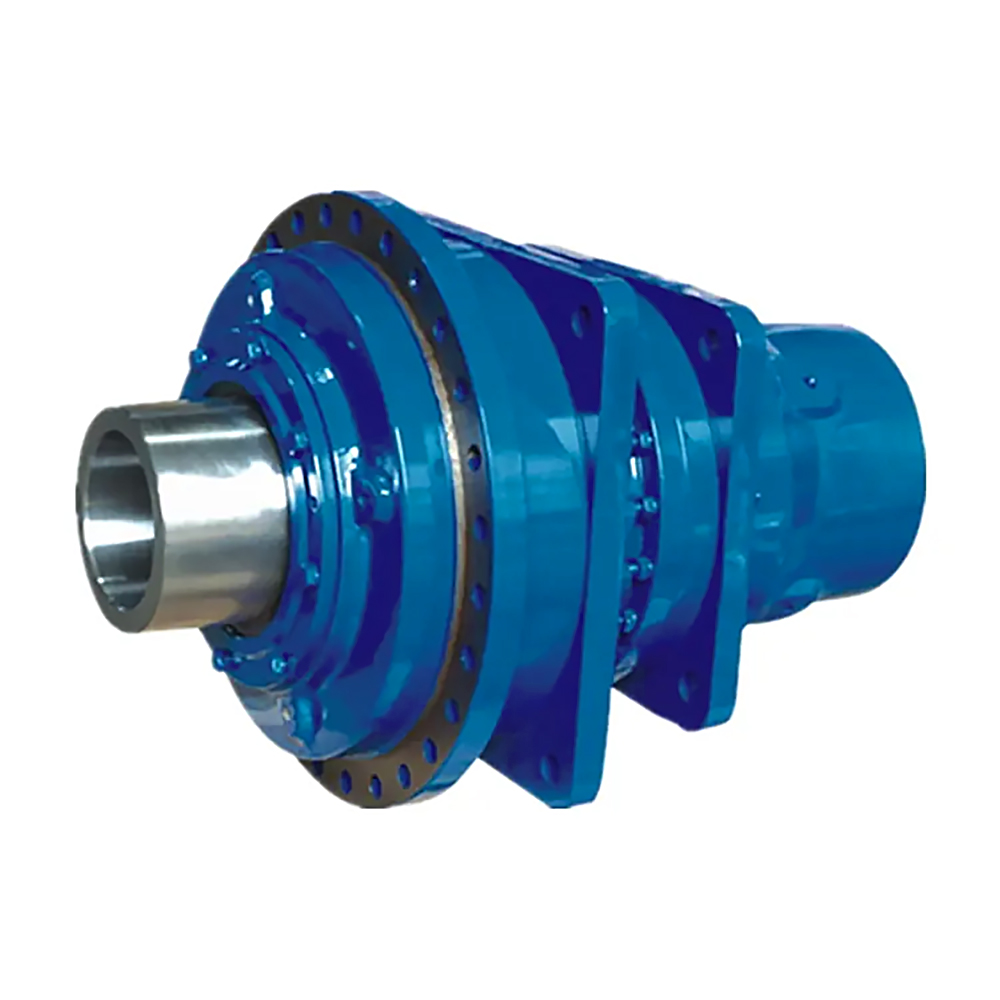

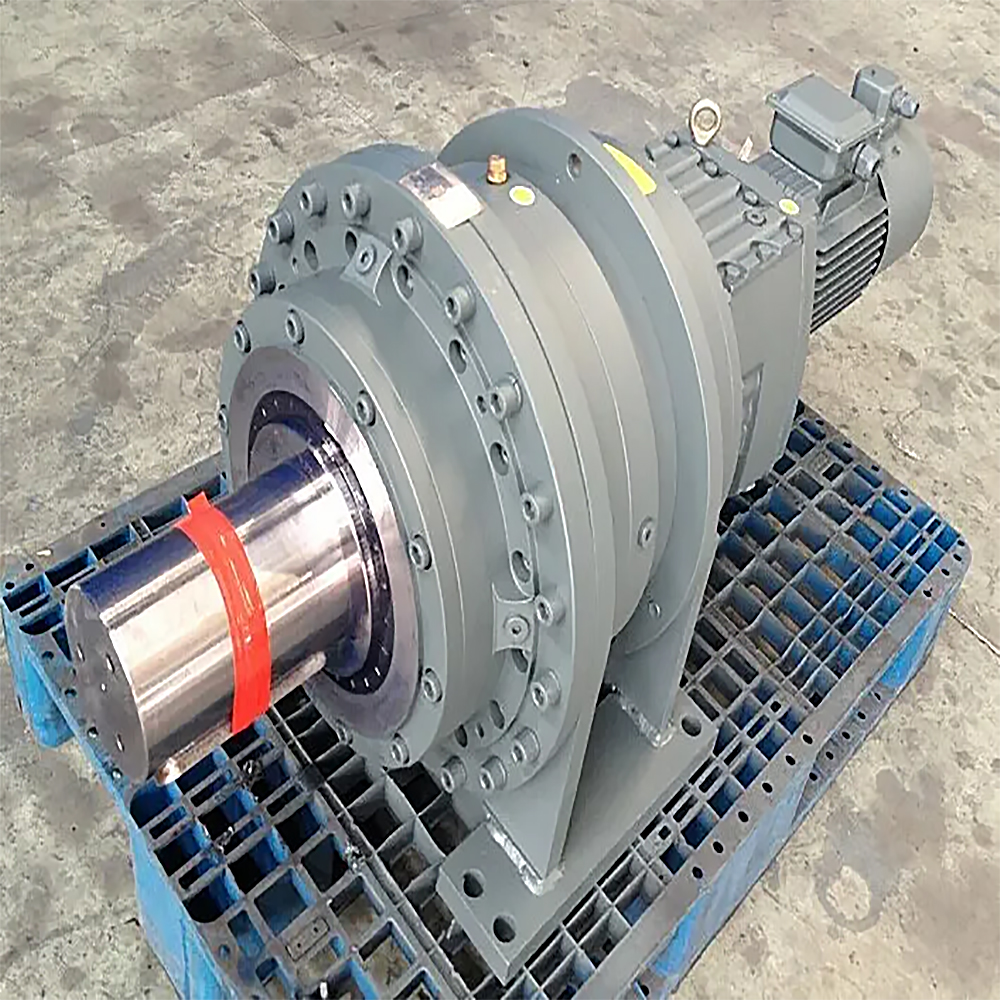

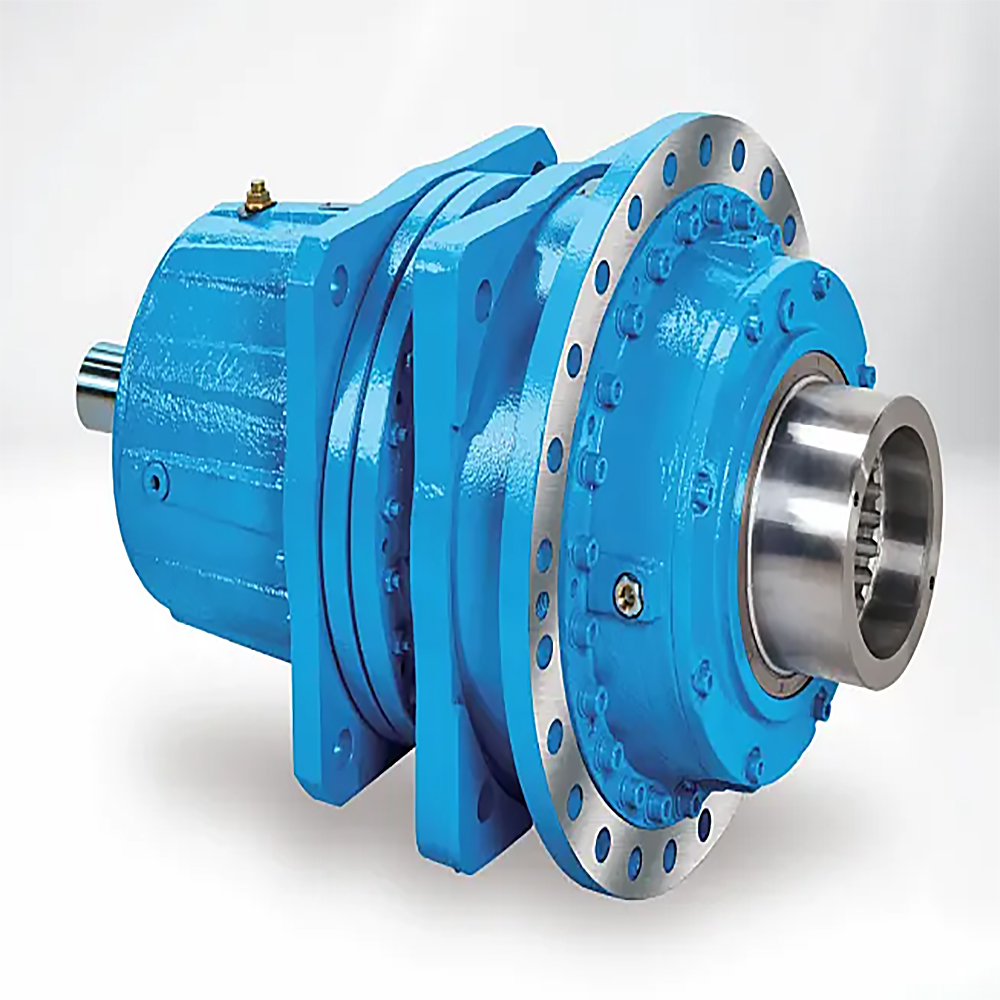

- The MP Series Standard Industrial Planetary Gearboxes are built on an advanced stand-alone standard industrial planetary gearbox platform that incorporates cutting-edge modular design technology. This design concept not only ensures that the product complies with strict industry standards, but also gives it a high degree of reliability, capable of stable operation in a variety of complex industrial environments, providing users with long-term, trouble-free service.
- The structure of key components was deeply optimised with the help of finite element analysis. This makes the overall structure of the gearbox more compact, achieving more powerful functions in a limited space and reducing the footprint and installation space requirements of the equipment. At the same time, the optimised structure enhances the rigidity and stability of the parts, further improving the
durability and reliability of the gearbox.
- Topology optimisation technology is used to significantly improve the power density ratio. The output power and torque capacity of the gearbox has been significantly increased without increasing its size and weight, resulting in more efficient energy utilisation and a more compact design. This not only reduces production costs, but also brings users a more cost-effective and affordable option.
- One of the core strengths is the hardened tooth face design, which strictly follows the requirements of high international standards such as ISO, AGMA and DIN. During the manufacturing process, high-quality materials are selected and advanced heat treatment and machining processes are applied to provide the gear surface with extremely high hardness and wear resistance. Even under extreme working conditions and high loads, the gears maintain excellent performance and long service life.
- A wide range of sealing forms are available with a unique sealing structure. This design can effectively cope with a variety of harsh working environments, such as high temperature, high pressure, dusty, water, etc., which significantly reduces the risk of leakage, guarantees the purity and adequate supply of internal lubricant, and prevents the intrusion of external impurities, thus ensuring the stability and reliability of the gearbox in long-term operation.
- Configured with a variety of output methods, can flexibly adapt to a variety of different applications and installation requirements. Whether it is horizontal output, vertical output, or specific angle output requirements, can easily meet, for the user in the equipment layout and installation connection provides great convenience, improve the integration and compatibility of the system.
Main Technical Parameters:
- With an extremely wide torque range from 100 to 5,800 (kN.m), this broad torque coverage allows the MP series gearboxes to accommodate a wide range of high torque outputs. Whether it's large, heavy machinery or high-precision industrial equipment, there's a torque configuration to match, ensuring precise and powerful power delivery.
- The range of ratios from 45 to 2,300 provides an extremely wide choice of speeds. The output speed can be precisely adjusted according to specific work requirements and process characteristics, achieving a wide range of variations from low-speed high torque to high-speed low torque, meeting the diverse and refined requirements of different application scenarios for equipment performance.
Main application areas:
- In the field of roller press drive, MP series gearboxes can provide strong and stable power support for roller presses, adapt to the working environment of high pressure and high abrasion, and ensure efficient crushing and compaction of materials, which is widely used in raw material processing in cement, mining and other industries.
- In winch lifting application, facing heavy load and frequent starting and stopping conditions, this series of gearboxes can accurately control the lifting speed and torque of the winch to ensure the safe transport of materials and personnel, playing a key role in the field of mining, building construction and other fields.
- In the field of mining machinery, which covers a wide range of processes from ore mining, conveying to ore dressing, MP series gearboxes, with their high torque and high reliability, are able to drive a variety of large-scale mining equipment, such as crushers, conveyors, elevators, etc., and are adapted to the harsh working conditions and high loads of the mining requirements.
- Coal industry, in the process of mining, transporting and processing of coal, requires reliable Power transmission equipment, MP series gearboxes can meet the heavy-duty operation and complex working conditions of coal equipment, to provide a guarantee for the efficient production of coal.
- In the sugar industry, in the process of cane crushing and sugar extraction, gearboxes need to provide stable speed and torque control, and the high performance and multiple output modes of the MP series can meet the special needs of sugar crushing equipment, guaranteeing the continuity of production and the quality of products.
Important Note:
- Install on a stable and solid foundation and follow the manual to ensure accuracy.
- Before installation, check the exterior and interior thoroughly and make sure the tools and materials are complete.
- Fill up lubricating oil, check lubrication and electrical system before operation.
- Monitor the status during operation, abnormal shutdown to check and repair and adjust.
- Regularly check the sealing, clean up to keep the heat dissipation, according to the requirements of maintenance.
- Disconnect the power before stopping the machine for maintenance and set up marking and locking, and operate correctly to prevent damage.
- Enhance protection in harsh environments, and use genuine parts for maintenance and debugging.
- Establishment of archives to provide a reference basis for management and decision-making.
