Brand: BOCH
Applicable Industry: Manufacturing Plant, Construction Works, Energy &Amp; Mining
Performance Characteristics:

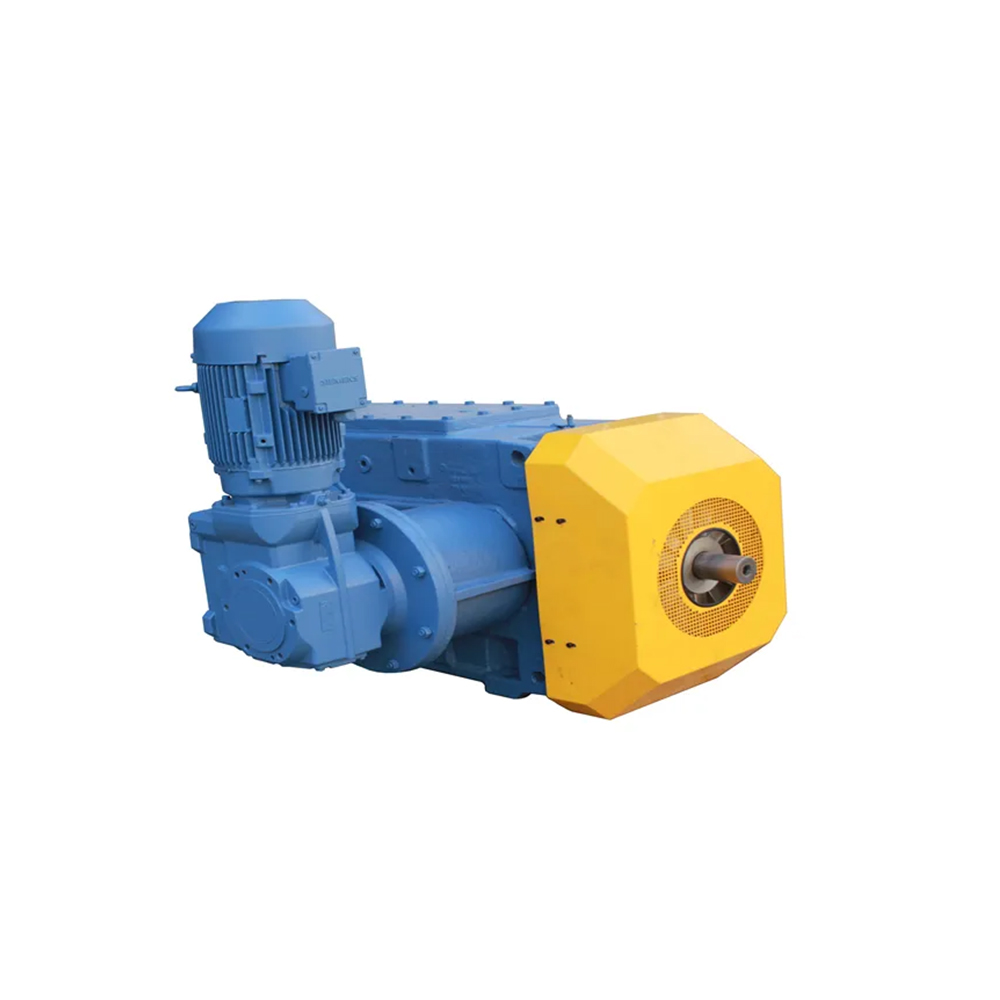

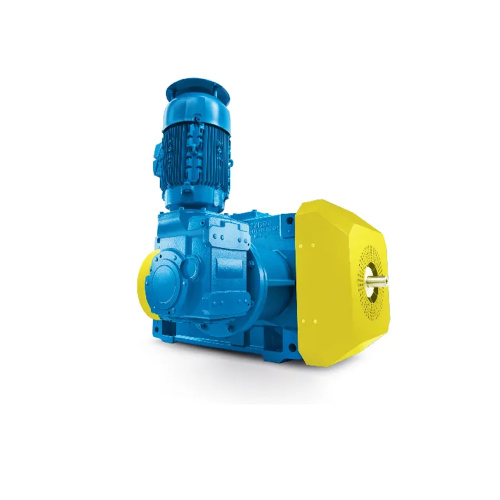

-Based on the standard platform, the modularization and special design are skillfully integrated, so that the gearbox is more economical and applicable while having powerful functions. This design concept can not only make full use of the scale advantage of modularization, but also meet the special operational requirements of cooling tower fans.
-Finite element analysis is used to optimize the structure of key components, making the overall layout more compact, saving installation space and improving the stability and reliability of the structure.
-The tooth profile and tooth direction are carefully optimized to make the load distribution more uniform, thus significantly increasing the load carrying capacity. It can operate stably and reliably under the complex and changing working conditions of cooling towers.
-Adoption of hardened tooth face design, which fully meets the high standards of ISO, AGMA and DIN, and has excellent wear resistance, fatigue resistance and impact resistance, ensuring that the gearbox maintains good performance in long-term operation.
-Optimizing the shape of the shell and adopting a unique heat dissipation layout greatly improves the heat dissipation efficiency, effectively reduces the temperature of the gearbox during operation and prolongs its service life.
M-ain technical parameters:
-Torque range: 6.6-236 (kN.m), covering a wide range to meet different load requirements.
-Ratio range: 25-90, providing a variety of options to adapt to different lifting speed requirements.
-Rated power: 13-1,773 (kW), adapting to different sizes of hoisting equipment.
Main application fields:
-Building materials and cement: used for lifting and conveying materials in cement production to ensure the smooth production process.
-Mining: to provide power for the lifting of mining materials, to adapt to the harsh working environment.
-Grain: to help the grain industry material lifting, to ensure the safe transportation of grain.
Important Tips:
-When installing, make sure the foundation is solid and level, strictly follow the installation instructions to ensure the precision of connection.
-Choose suitable lubricant, check and replace it regularly to keep it well lubricated.
-Avoid overload operation, and reasonably control the weight and volume of materials.
-Make a regular inspection plan, pay attention to the wear and abnormality of key parts.
-Stop the machine in time when it fails, and have it repaired by professional personnel, and it is strictly prohibited to start the machine without authorization.
-Take good protection during operation to prevent personnel injury.
-Pay attention to moisture-proof, shock-proof and rust-proof in storage and transportation.
