Compared with the common types of
Standard Industrial Gearboxes,
Metallurgical Equipment Gearboxes, Construction Machinery Gearboxes and
Mining Equipment Gearboxes,

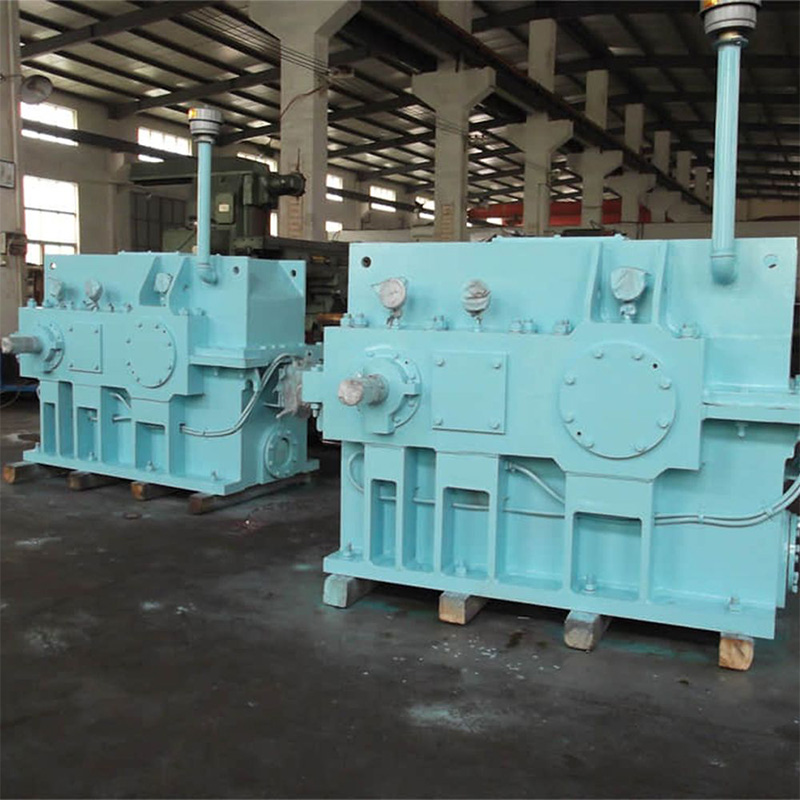

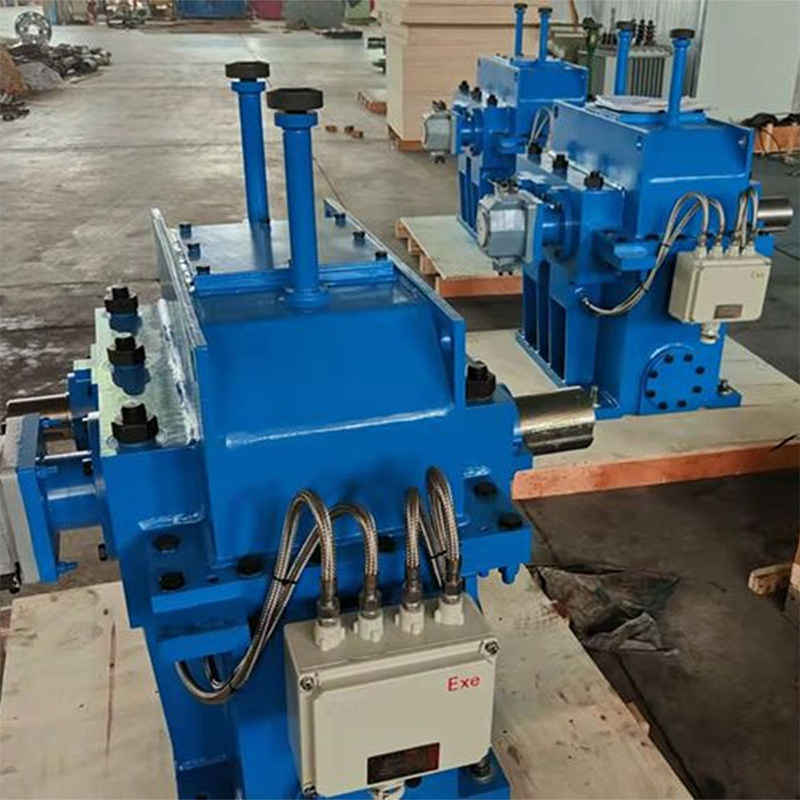

High-speed Gearboxes stand out due to their unique application scenarios. Gearboxes for steam turbines, High-speed Gearboxes for blowers, and High-speed Gearboxes for combustion engines are widely used in energy, chemical, oil and gas, and other high-rotation working conditions due to their special application environments. These working conditions put forward very high requirements on the efficiency, vibration control and reliability of gearboxes.

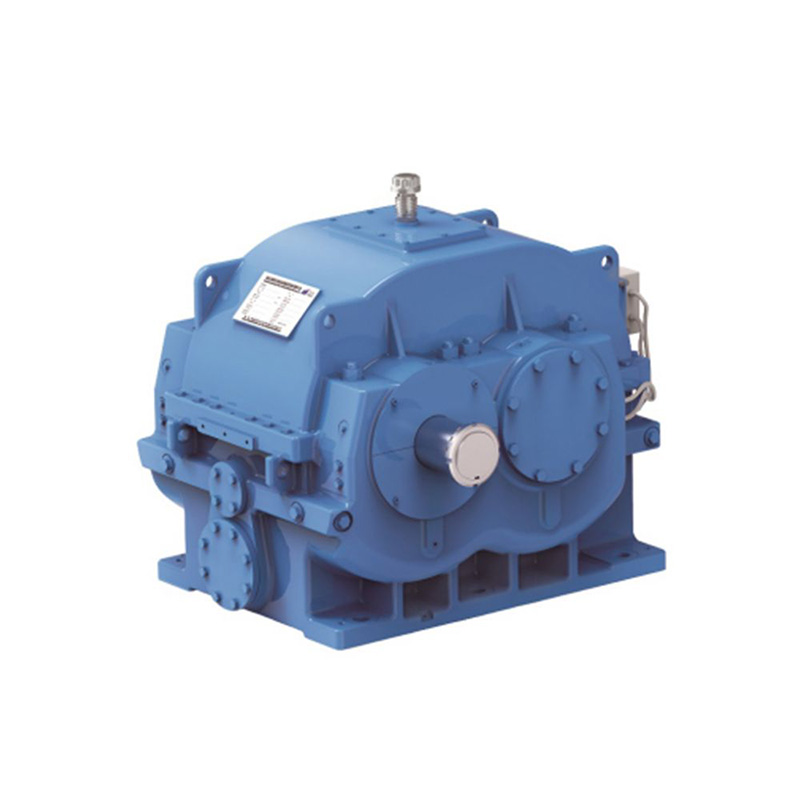

By virtue of its strong R&D strength, Nanhigh Gear has independently developed the MTG series of High-speed Gearboxes. This series of products show excellent competitiveness in terms of efficiency, vibration performance, reliability and cost-effectiveness, and have successfully passed the international authoritative API industry certification, so their quality is highly recognized.
Performance Characteristics:
High speed: With excellent speed performance, the maximum speed can reach 67,000r/min and the maximum linear speed can reach 176m/s, which can easily cope with all kinds of high speed demand scenarios.
High standard: The design process strictly follows the international and industry advanced standards such as API, AGMA and ISO, which ensures the high quality and performance of the products from the source.
High Precision: Gear precision reaches ISO grade 3 - 5, which greatly improves the precision and stability of transmission.
High Efficiency: With excellent efficiency performance, the efficiency is up to 98.5% or more, which effectively reduces energy loss and improves production efficiency.
High reliability: The carefully designed structure and material selection ensure that its design life is not less than 20 years, providing a solid guarantee for long-term stable operation.
High carrying capacity: Adopting advanced lightweight design technology, it ensures strong carrying capacity while reducing its own weight.
Main technical features:
Structural form: single-stage herringbone tooth structure is adopted, and this design helps to improve the smoothness of transmission and load carrying capacity.
Ratio range: The range of speed ratio is between 1 - 10, which can be flexibly adapted to the transmission needs of different equipment.
Speed range: The speed range of high speed shaft is 3,000 - 25,000 r/min, which can meet the requirements of various high speed working conditions.
Rated power: Rated power ranges from 500 - 100,000 kW, which can meet the power requirements of different sizes of equipment.
Main Application Areas:
MTG series high-speed gearboxes are widely used in supporting gearboxes for steam turbines, combustion turbines for power generation, centrifugal axial fans, blowers, compressors, high- and low-pressure pumps, cracking catalytic energy recovery, oxygen generators, etc., which provide the core support for the high-efficiency operation of these key equipments. Its application scenario is significantly different from that of Standard
Industrial Gearboxes, Metallurgical Equipment Gearboxes, Construction Machinery Gearboxes, Mining Equipment Gearboxes, fully demonstrating its irreplaceable value in specific high speed fields.
