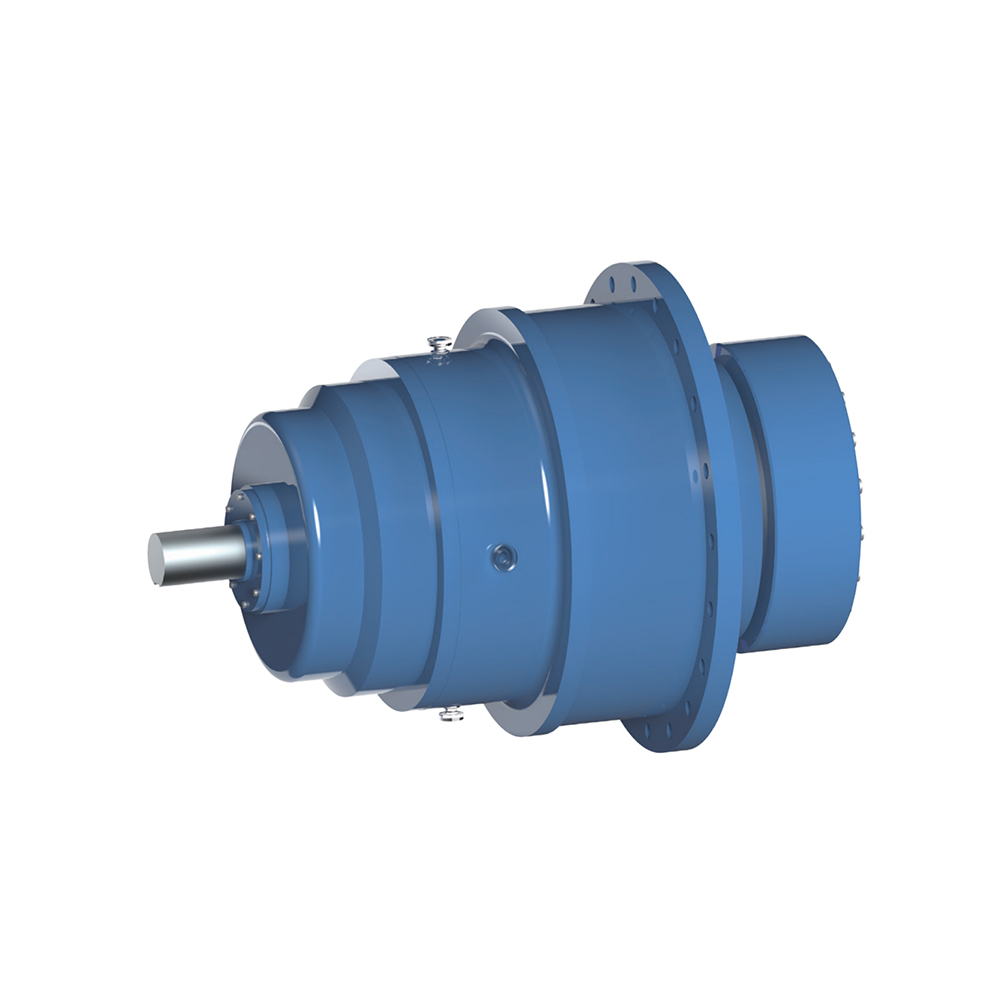

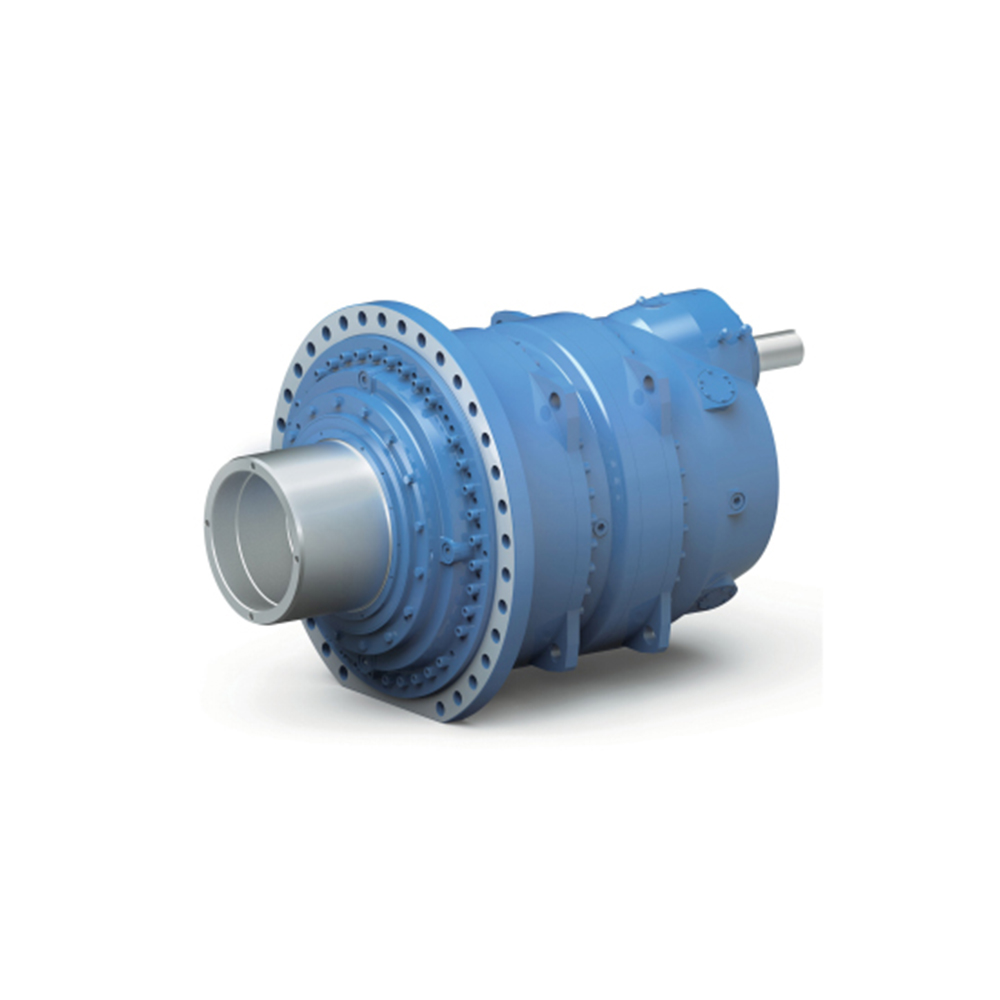

Standard vertical mill gearbox

- Collaborative R&D, international vision: based on the standard platform of Industrial Gearboxes, it is elaborated by the dual R&D team of China and Germany. Fusion of the technical expertise of the two countries, absorbing the international advanced concepts, so that the product has a globalized high-quality genes, one step ahead of the design source.

- Modular innovation, flexible and efficient: advanced modular design technology, high versatility and interchangeability of main parts, greatly reducing the variety of parts specifications. This not only speeds up the production process and reduces costs, but also allows for quick replacement of parts during equipment maintenance, reducing downtime, ensuring production continuity and improving overall operational efficiency.

- Gear optimization, efficiency upgrading: the internal gears have been optimized and designed in depth, and the transmission efficiency is significantly improved through the precise adjustment of tooth shape, tooth pitch and other parameters. Highly efficient Power transmission reduces energy loss, which meets the dual requirements of energy saving and efficient production in modern industry and helps enterprises to reduce operating costs.

- Strengthened bearings, durable and long-lasting: the bearing type is enlarged as much as possible, which enhances the bearing capacity. The large bearing effectively disperses the radial and axial load in the operation of the equipment, reduces wear and fatigue, greatly extends the service life of the bearing, reduces the frequency of maintenance, and ensures the long-term stable operation of the equipment.

- Unique case, compact and strong: The unique case design is ingenious, and is optimized from structural mechanics, heat dissipation performance to material strength. It not only provides a solid operating environment for the internal components, but also realizes the compact structure, improves the power density, and releases more powerful power in the limited space.

- Vibration and Noise Reduction, Quality Improvement: Advanced technology is adopted to reduce vibration and noise. The combination of special damping materials, optimized gear meshing buffer structure and acoustic treatment of the box body reduces the impact and wear of vibration on the components, reduces noise hazards, prolongs the life of the gearbox, and improves the working environment at the same time.

- Exquisite craftsmanship, economic and durable: High-quality processing technology ensures the excellent quality of parts. Strict control from the screening of raw materials to each processing procedure ensures that the parts have a higher service life. Precise coordination between high-quality parts reduces friction and loss, minimizes failure and reduces the maintenance cost of the whole machine.

- Diversified sealing, no worry about leakage: a variety of sealing forms with special sealing structure, effectively reducing the risk of leakage. Whether lip seals, labyrinth seals or high-pressure oil seals, all of them are reasonably arranged according to different application parts and working conditions, forming an all-round protection to ensure clean and stable operation of the equipment.

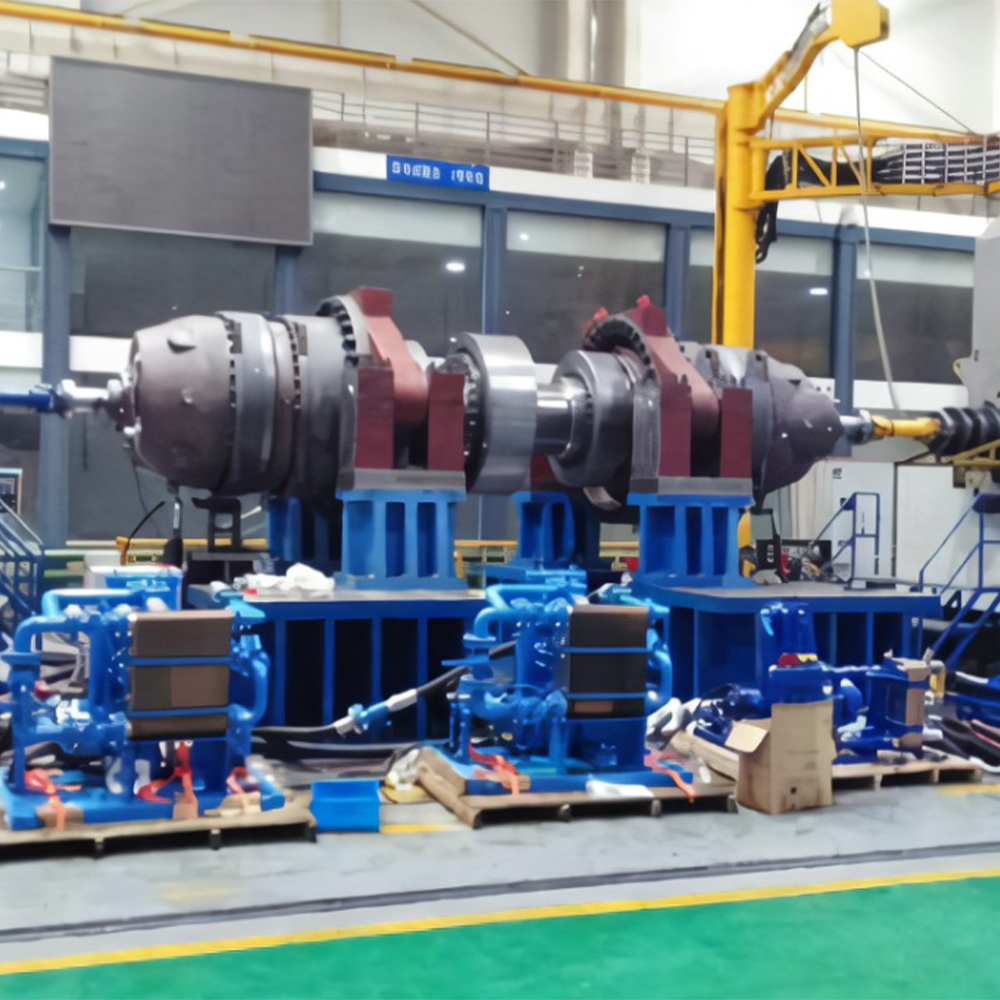

- Fully integrated, convenient and easy to use: We can provide a complete set of equipment including gearboxes, torque arm systems, couplings and oil supply systems to meet customers' needs in one-stop. The special design of the shrinking disk makes it easy to disassemble and replace the parts quickly during maintenance and repair of the equipment, saving time and labor cost.



- Torque range: 200-5,800 (kN.m), a wide range of torque can adapt to the power needs of different working conditions, whether it is a light load or heavy-duty operations, can be accurately matched, stable power output.

- Speed ratio range: 25-125, flexible speed ratio settings can meet the requirements of various speeds, so that the equipment can operate efficiently in different production processes and procedures, to ensure the precision and efficiency of material handling.



It has a wide range of applications in industrial industries such as cement and mining. In cement production, the crushing of limestone, clay, iron ore and other raw materials, as well as the grinding of cement clinker, can rely on its stable and reliable performance, precise control of material particle size, to ensure the quality of cement products. In the field of mining, for the crushing of iron ore, copper ore, limestone and other types of ores, its strong torque output and high reliability can effectively improve the crushing efficiency and yield, reduce production costs, and provide solid power support for the core of industrial production.



- The illustrations in the samples are only examples and are not binding, the actual product shall prevail in kind.

- Standard gearboxes are delivered in a quasi-operational state, but they need to be filled with lubricating oil before operation, and the viscosity and type of lubricating oil must be in accordance with the provisions of the nameplate to ensure normal lubrication and operation of the equipment.

- The data and instructions about the oil quantity are for reference only, the actual refueling quantity should be based on the level gauge or the middle of the round oil mark, to avoid over or under refueling affecting the performance of the equipment.

- Rotating parts should be guarded to prevent accidental contact. Please strictly observe the current local safety regulations to ensure the safety of the operator.

- Sealing, lubrication, ventilation, surface protection and other gearbox features may need to be adjusted for different applications to suit the particular environment and process requirements and to ensure that the equipment is always in optimum operating condition.
