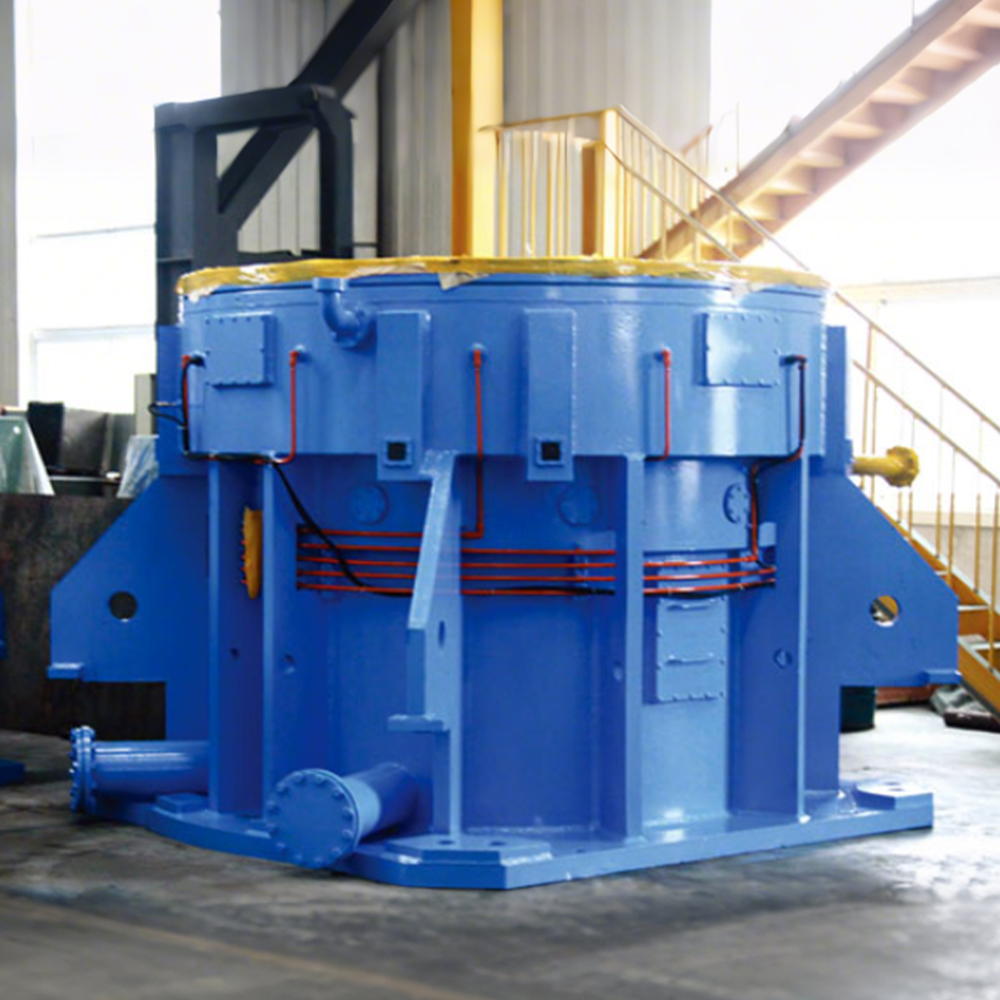

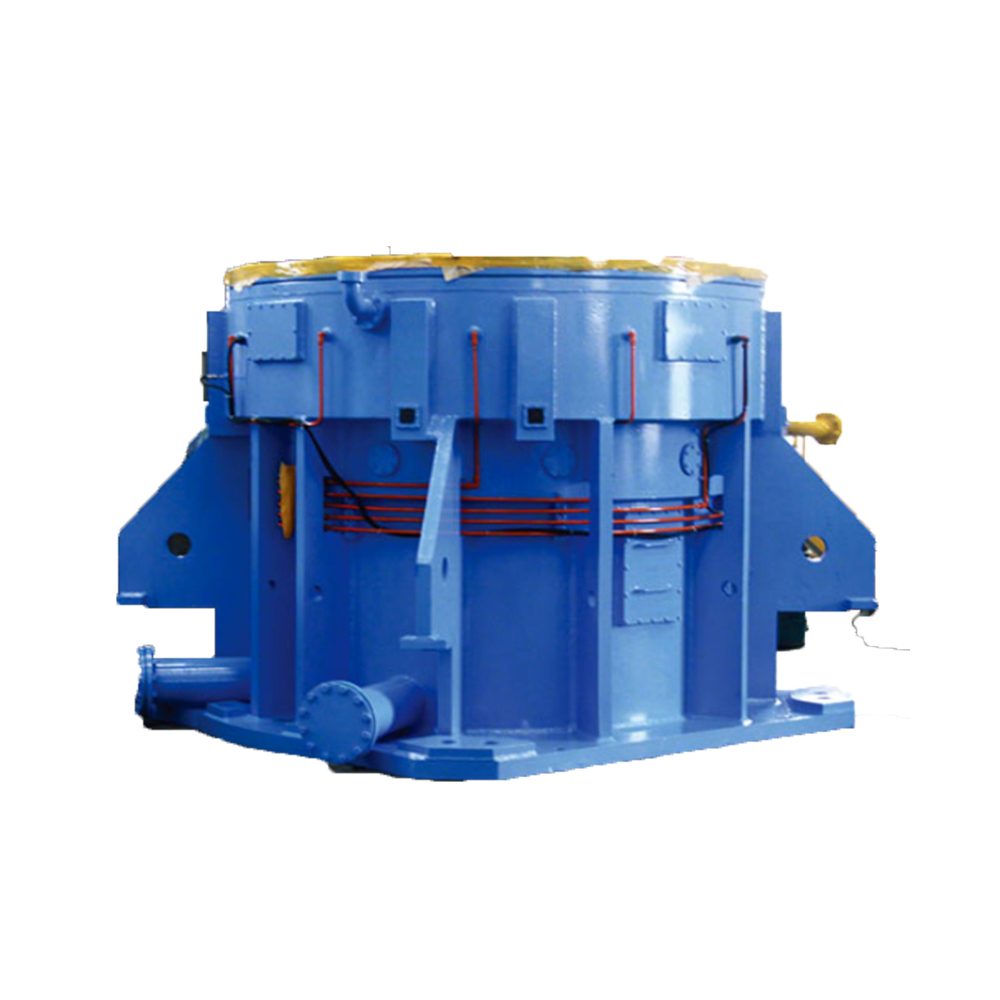

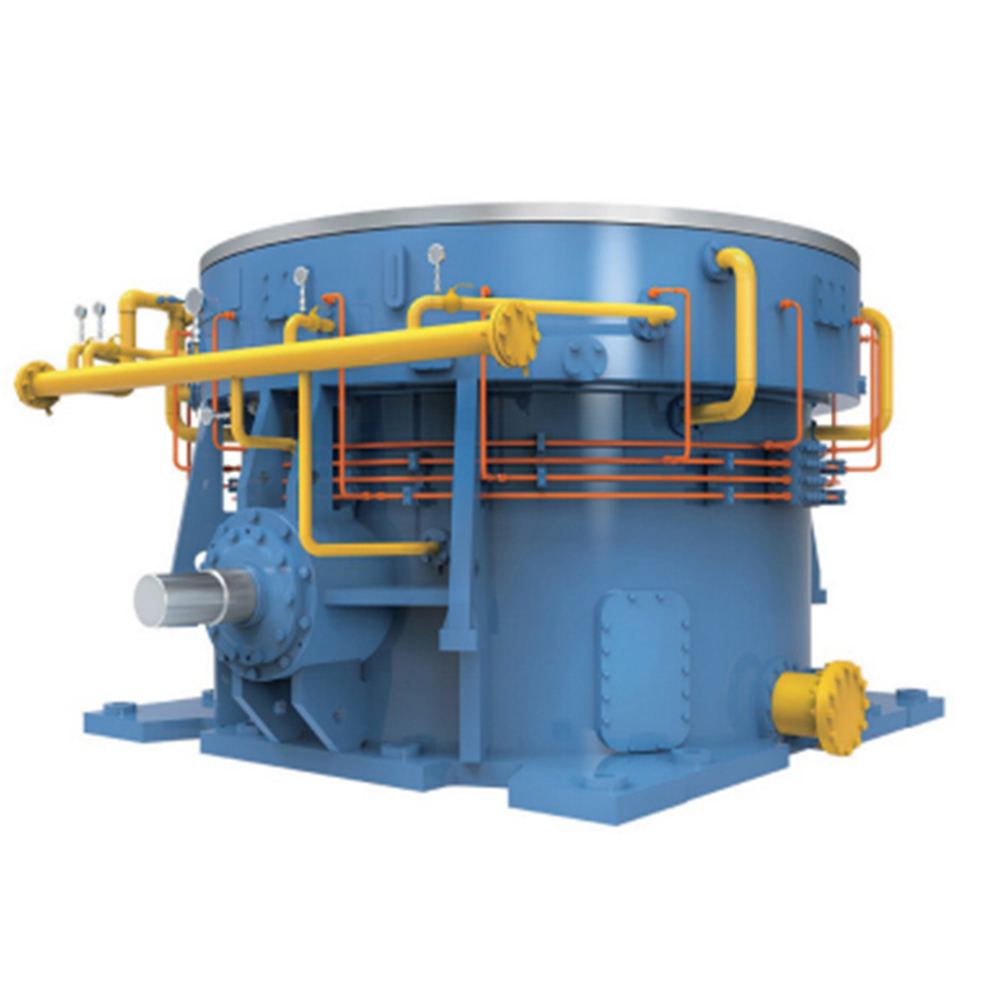

Gearboxes for Mining Grinding Systems

- Advanced platform system, modularized design, good interchangeability of parts. Modular design is a major highlight of the hoist gearbox, which makes each part highly versatile and replaceable. This not only improves efficiency and reduces costs in the manufacturing process, but also can quickly find suitable replacement parts when the equipment needs repair and maintenance, greatly reducing downtime and ensuring the continuity of production.

- The structure of key parts is optimized by finite element analysis, which is more compact. The key parts in the gearbox are carefully optimized through advanced finite element analysis technology.

- Optimized tooth profile and tooth direction trimming for uniform load distribution and high load carrying capacity. Careful shaping of tooth profile and tooth direction is the key to realize efficient transmission and long-life operation of the hoist gearbox. The optimized tooth shape can make the load more evenly distributed in the gear meshing process, effectively reducing the local stress concentration and wear, greatly extending the service life of the gear.

- Unique thrust bearing and complete load bearing structure, multiple lubrication configurations to meet the needs of multiple types of working conditions. The uniquely designed thrust bearing and complete load bearing structure provide strong and stable support for the gearbox. They can effectively withstand axial and radial loads, ensuring that the gearbox still maintains stable performance at high speeds and heavy loads.



- Ratio range: 20 - 60 A reasonable range of ratios provides precise speed adjustment for a variety of different work requirements.

- Rated power: 80 - 9,000 (kW). Such a wide range of rated power enables it to meet the power requirements of all types of equipment from small to large.



- Raw material mills, coal mills, pre-powder mills, cement mills, slag mills, gypsum, fly ash in the building materials and cement industry. In the production process of building materials and cement, elevator gear box plays a vital role. In the link of raw material mill, it grinds the raw materials finely and lays the foundation for the subsequent process; coal mill ensures the full combustion of coal and improves the efficiency of energy utilization; pre-powdered mill reduces the burden of the subsequent processing; cement mill produces high-quality cement; slag mill realizes the reuse of waste slag; gypsum and fly ash processing is also inseparable from its stable transmission.

- Coal mill and limestone mill in power and metallurgy industry. In the power and metallurgy industry, Elevator Gearboxes provide power support for key equipment such as coal mills and limestone mills, ensuring fine grinding of coal and limestone, providing high-quality raw materials for the power generation and metallurgy processes, and improving production efficiency and product quality.

- Grinding system for calcite and ceramic powder in mining industry. In the mining industry, for the grinding process of calcite, ceramic powder and other ores and materials, the hoist gearbox can provide stable and efficient power, help the deep processing of ores, improve the utilization rate of mineral resources, and provide strong support for thedevelopment of the mining industry.



- Carefully check the equipment model, specifications and technical parameters before installation to ensure that it matches the mill and the installation foundation is firm and level. Ensure that the selected gearbox model and specifications are exactly the same as the requirements of the mill, and any mismatch may cause the equipment to fail to operate normally or even be damaged. At the same time, the firmness and flatness of the installation foundation are directly related to the stability and safety of the equipment operation, and must be strictly controlled.

- Regularly check the lubricant oil level, oil quality, and replace it on time to ensure that the cooling system is normal. Lubricating oil is one of the key factors to ensure the normal operation of the gear box. Regularly check the oil level to ensure that the lubricant is sufficient; check the oil quality, timely detection of possible contamination and deterioration, and replace the lubricant on time to ensure good lubrication effect.

- Pay close attention to the temperature, vibration, noise and other parameters during operation, and stop the machine immediately for inspection when abnormal. In the process of equipment operation, continuous monitoring of temperature, vibration and noise parameters is an important means of timely detection of problems. High temperatures may indicate poor lubrication or component wear; abnormal vibration and noise may indicate loose or damaged parts.

- Formulate a regular maintenance program, thoroughly inspect gears, bearings, seals, etc., and replace worn parts in a timely manner. During maintenance, gears, bearings, seals and other key parts should be thoroughly inspected, and severely worn parts should be found and replaced in time to ensure that the equipment is always in good operating condition.
