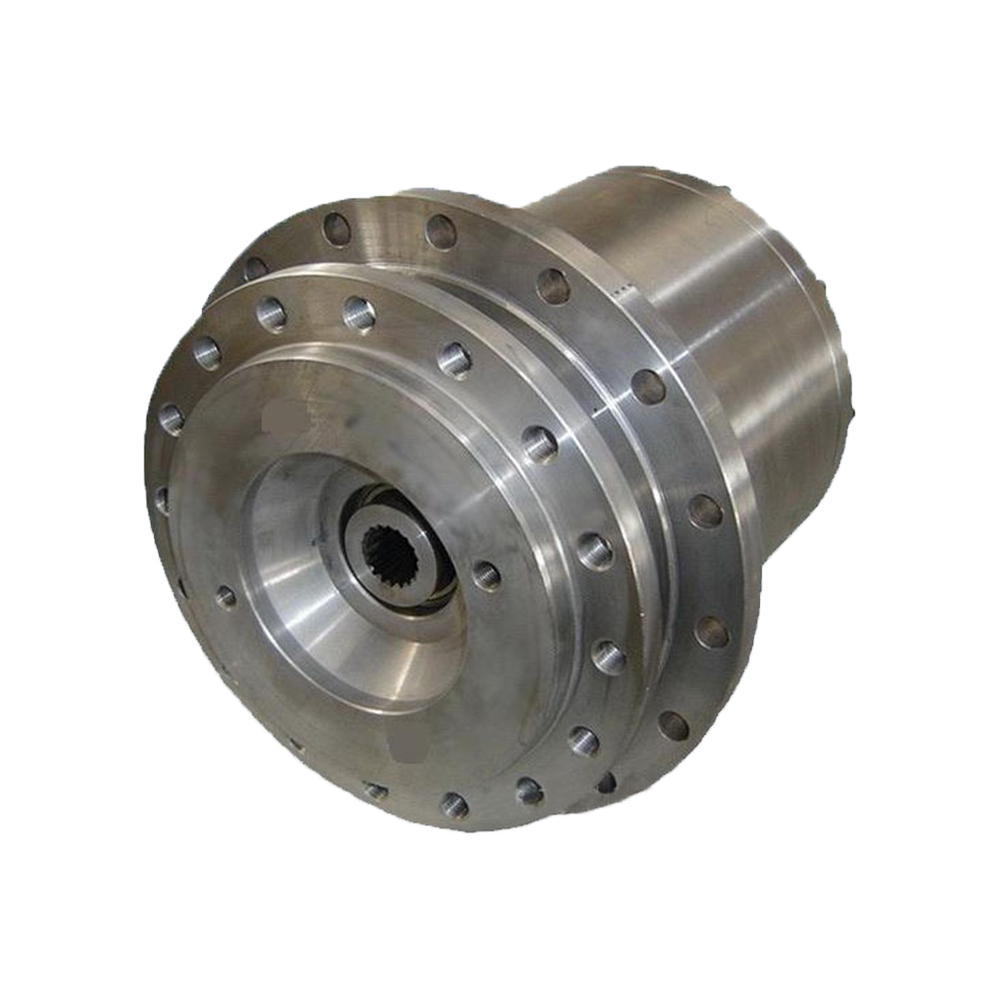

Industrial Specialized Windlass Reducer

- Modular architecture, high efficiency customization: adopting modular design concept is like building an intelligent building block system, with each module cooperating with each other and having a high degree of versatility. This structure not only significantly accelerates the production process, significantly shorten the product delivery cycle, but also according to customer-specific needs and working conditions, flexible combination or non-standard design.

- Sturdy structure and strong load-bearing: Whether it is the high intensity load of cranes lifting heavy goods or the complex force conditions of rotary drilling rigs during the process of reeling and releasing drilling rods, the SCM-W winch reducer can stably support the operation of the equipment, effectively reduce the risk of failures due to the lack of structural strength, and ensure the efficient operation of the equipment for a long period of time, which will significantly prolong the overall service life of the equipment.

- Smooth transmission and quiet operation: Advanced gear design and exquisite manufacturing technology ensure that the gear meshing precision reaches the ultimate, and the Power transmission is smooth and unhindered, which effectively reduces vibration and impact. This not only makes the equipment more accurate and stable during winching and lifting operations, significantly improving operational efficiency and quality, but also greatly reduces operational noise.

- Durable and convenient maintenance: The design concept pays high attention to reliability and durability, selecting high-quality materials and applying advanced heat treatment technology to give the gears and bearings and other key components excellent fatigue resistance and super wear resistance.

- Braking with heart, safety guarantee: according to the customer's demand and the actual condition of the equipment, you can flexibly choose the built-in or external wet hydraulic multi-plate static brake.



- Model identification, precise matching: SCM-W model, as the unique identification of Nanko Gear winch reducer, contains specific design structure and performance qualities.

- Excellent transmission ratio, free speed control: The range of transmission ratio is set between 45-450. When the crane lifts precise and valuable items, a larger transmission ratio can be selected to realize slow, smooth and precise reeling action to ensure the safety of the items being lifted and transported; while when the crane or rotary drilling rig needs to quickly lift or lower the working tools, a smaller transmission ratio can be selected to achieve fast and efficient reeling operation.

- Strong torque, powerful drive: the maximum output torque is up to 275kN.m. When lifting heavy goods on large cranes, the high torque can easily overcome the obstruction of gravity to ensure the wire rope is smoothly and powerfully coiled to realize the safe lifting of goods; when coiling and releasing the drill pipe on rotary drilling rigs, the strong torque can ensure the smooth lifting and lowering of the drill pipe in the complex stress conditions to realize accurate and efficient drilling operations. Drilling operation.



Mainly used in many kinds of cranes, rotary drilling rigs, deck cranes and other equipment winch lifting mechanism. In the field of cranes, it is the core power component to realize vertical lifting and transporting of goods; in rotary drilling rigs, it is responsible for the precise winding and releasing of drilling rods, so that the drilling rigs can carry out drilling operations in different stratum depths, and ensure the smooth and efficient drilling process through the adjustment of the winching and lifting speed and strength; in the deck crane, it ensures that the cargoes can be reliably winch lifted under the shaking environment of the ships on the sea.



- Before installation, be sure to carefully check the model and specification of SCM-W winch reducer and the suitability of the host equipment, check the firmness and flatness of the installation foundation, ensure that the installation environment is clean and free of debris, and operate in strict accordance with the installation instructions, so as to avoid equipment failures or safety accidents caused by improper installation.

- Regularly carry out a comprehensive inspection of the winch reducer, including the wear of gears, the operating status of bearings, the braking efficiency of the brake, etc., according to the operating hours and conditions of the equipment, timely replacement of lubricating oil and wearing parts, to ensure that the gear box is always in a good state of operation, to extend the service life of the equipment.

- During operation, pay close attention to the operating parameters of the winch reducer, such as temperature, vibration, noise, etc., if abnormalities are found, it should be immediately shut down for inspection, troubleshooting and repair, strictly prohibit the equipment from operating with faults to prevent the expansion of the fault, endangering personnel safety and normal operation of the project.

- For the built-in or external wet hydraulic multi-plate static brake, it is necessary to regularly check the hydraulic oil level, brake pad wear, etc., to ensure that the brake can function properly at critical moments, and to ensure the safe braking performance of the equipment, especially under special working conditions such as slope operation and sea operation, it is more important to strengthen the inspection and maintenance of the brake.
