Performance Characteristics:

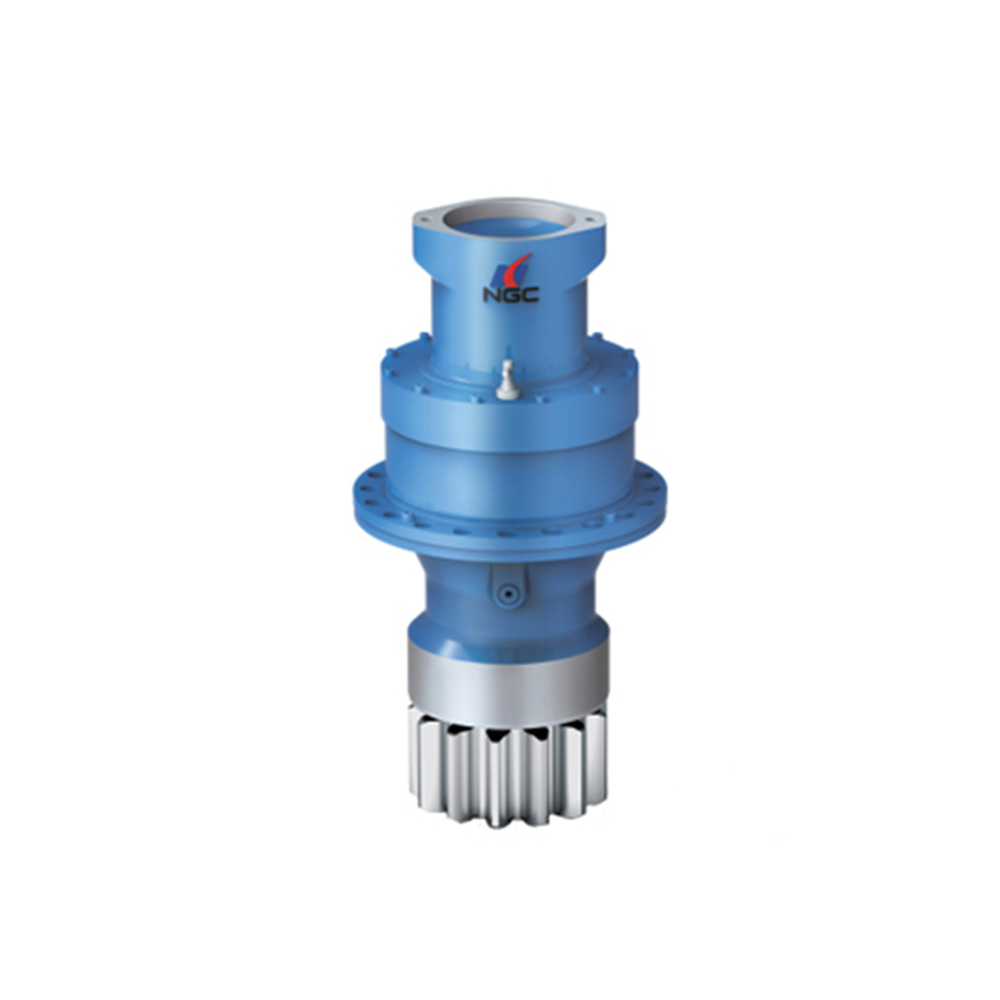

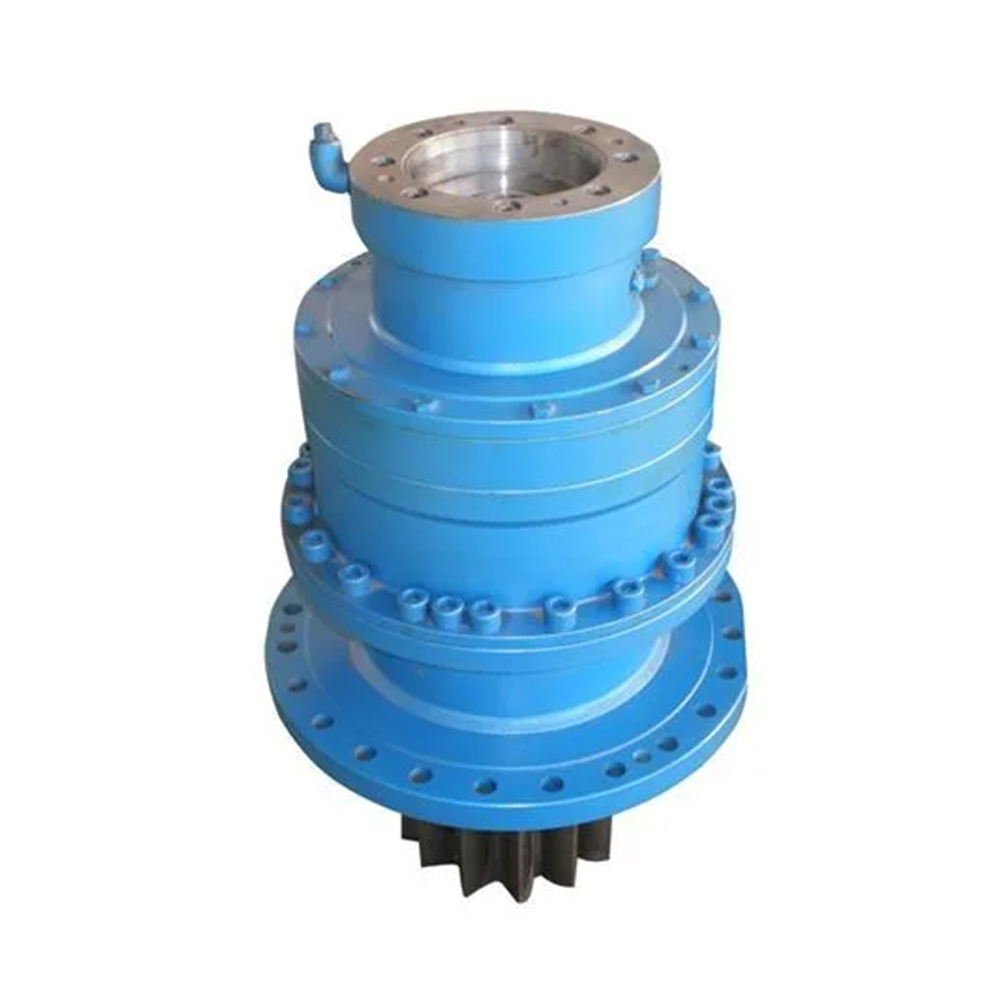

Modular design: Based on the mature technology platform of South High Gear, the slewing reducer adopts modular design concept.
Compact structure and large load capacity: Through careful structural design and advanced manufacturing process, it realizes excellent load capacity performance in limited space.
Smooth transmission, low noise: in the design of the transmission system, the use of high-precision gear processing technology and advanced transmission optimization algorithms. The gear meshing precision is extremely high, and there is almost no stutter and impact in the Power transmission process, thus realizing an extremely smooth transmission effect.
Long service life and simple maintenance: the use of high-quality materials and exquisite heat treatment technology improves the wear resistance and anti-fatigue performance of the internal parts of the slewing reducer, which significantly extends the service life of the product. At the same time, its structural design has fully considered the convenience of maintenance, each key component is easy to dismantle and replace, and daily maintenance can be completed with only simple tools and basic operating skills.
Built-in or external wet hydraulic multi-plate static brake: According to the braking requirements and space layout limitations of different engineering equipment, the slewing reducer provides a flexible choice of built-in or external wet hydraulic multi-plate static brake. This type of brake is characterized by large braking torque, fast response speed, smooth braking and high reliability.
Non-standard design according to customer needs: Knowing the unique needs of different customers in special engineering application scenarios, NANKAO Gear Slewing Reducer has strong non-standard design capability. Whether it is a special rotary angle range, a specific installation interface form, or the adaptability of the extreme environment requirements, can rely on professional R & D team and a wealth of engineering experience, tailored for the customer's exclusive rotary reducer solutions.
Main technical parameters:
Model No.: SCM-T / MPPS This model series represents the different specifications and performance levels of NANKAO Gear Slewing Gearboxes, covering a wide range of slewing drive capabilities required by small construction equipment to large heavy machinery.
Ratios: range from 18-270, the wide range of ratios can meet the diversified needs of different engineering equipment in terms of slewing speed and torque output. For piling machinery drilling operations that require high-precision slow-speed slewing, a model with a larger ratio can be selected for precise angular control and sufficient torque output.
Maximum output torque: up to 100 kN.m. This powerful torque output capability enables the slewing reducer to cope with the high load conditions faced by various engineering equipment during the slewing process.
Main application areas:
Excavating machinery: In the working process of excavator, the slewing reducer plays a vital role. It is responsible for realizing the precise and smooth rotation of the upper rotary platform of the excavator relative to the lower traveling chassis, which enables the excavating bucket to quickly and accurately locate to the digging target position and flexibly adjust the digging angle in the process of digging operation.
Piling Machinery: For piling machinery such as rotary drilling rigs and piling rigs, the accuracy and reliability of the slewing reducer directly affects the quality of pile foundation construction. It can control the rotary table of the pile driving the drilling rod or pile hammer to make precise angle adjustment to ensure the perpendicularity of the pile hole and the accuracy of the pile position.
Lifting machinery: In all kinds of lifting machinery such as tower cranes, truck cranes, gantry cranes and other equipment, the slewing reducer is the key component to realize the horizontal slewing of the lifting arm. It can smoothly and accurately control the slewing angle and speed of the lifting arm when lifting heavy objects to ensure that the heavy objects can be accurately lifted to the designated position.
Horizontal Directional Drilling: Horizontal directional drilling equipment used in underground trenchless pipe laying project, the rotary reducer is responsible for controlling the rotary action of the drill bit. It can accurately adjust the rotary direction and speed of the drill bit according to the construction requirements to ensure that the drill bit drills underground according to the predetermined trajectory.
Deck cranes: Deck cranes used in the fields of ocean engineering and harbor loading and unloading face the challenges of harsh environment and frequent lifting operations at sea. The high reliability, shock resistance and flexible braking options of NANKO Gear Slewing Reducers enable them to perform well in the slewing operations of deck cranes.
Important Tips:
Installation and commissioning: When installing NANKAO Gear Slewing Reducer, the detailed steps and technical requirements in the product installation manual must be strictly followed. First of all, make sure that the installation foundation has enough strength and flatness to withstand all kinds of loads and vibrations during the operation of the slewing reducer.
Maintenance: In the process of daily use, it is necessary to carry out comprehensive inspection and maintenance of the rotary reducer on a regular basis. Focus on the oil level, oil temperature, oil quality and other indicators of the lubricant, according to the frequency of use of the equipment and the working environment, to reasonably determine the replacement cycle of the lubricant, to ensure that the internal transmission components of the rotary reducer is always in a good lubrication state.
Safety precautions: Since the slewing reducer involves large rotary motion and load transfer during the operation of engineering equipment, safe operation is crucial.
At the same time, the operator should be familiar with the performance characteristics of the equipment and operating procedures to ensure the safety and accuracy of the operation process.
