In modern mechanical design, the gearbox is one of the key components that plays a pivotal role in converting the power of an electric motor into the torque and speed required for actual work. However, how to choose the right gearbox, the different types and their respective characteristics often confuse designers. This article will focus on the characteristics and scenarios of spur gearboxes and planetary gearboxes to help you make a more informed choice.
Gearboxes mainly transfer power from one shaft to another through mechanical transmission elements, thus changing the output torque and speed. Motors are most efficient when operating at high speeds, which makes the configuration of the gearbox particularly important. The task of the gearbox is to dynamically adjust the output torque and speed under different operating conditions of the equipment to meet the needs of different applications.
Basic principles and types of gearboxes
Gearboxes enhance torque by reducing the speed of the motor output through an internally configured set of gears. The principle of operation is that a pair of gears meshes to indicate the conversion between torque and speed: the output speed is reduced according to the gear ratio, while the output torque is increased.
There are various types of gearboxes on the market today, including: spur gearboxes, planetary gearboxes, bevel gearboxes, helical gearboxes, and so on. Of these, spur gearboxes are the most common type and are known for their simple design, cost-effectiveness, and good durability. This type of gearbox uses parallel gears to mesh and is suitable for a wide range of industrial applications, especially where there is a fixed requirement for torque and speed.
The planetary gearbox is another very popular option. Its structure is designed to consist of a central sun wheel and multiple planetary wheels, a configuration that allows for a more balanced distribution of energy. Planetary gearboxes are capable of delivering higher torque in a relatively small space, making them widely used in high-tech applications such as robotics and 3D printing.
Spur gearboxes: balancing price and efficiency
Spur gears, as a type of spur gear, have the advantage of a simple manufacturing process and lower cost. It has a high transmission efficiency, allowing for effective torque increases and decreases with fewer gear sets. Spur gearboxes are very promising, especially for low speeds and less stringent noise requirements. However, the problem of noise during output, especially when multiple gears are engaged, is a drawback that cannot be ignored.

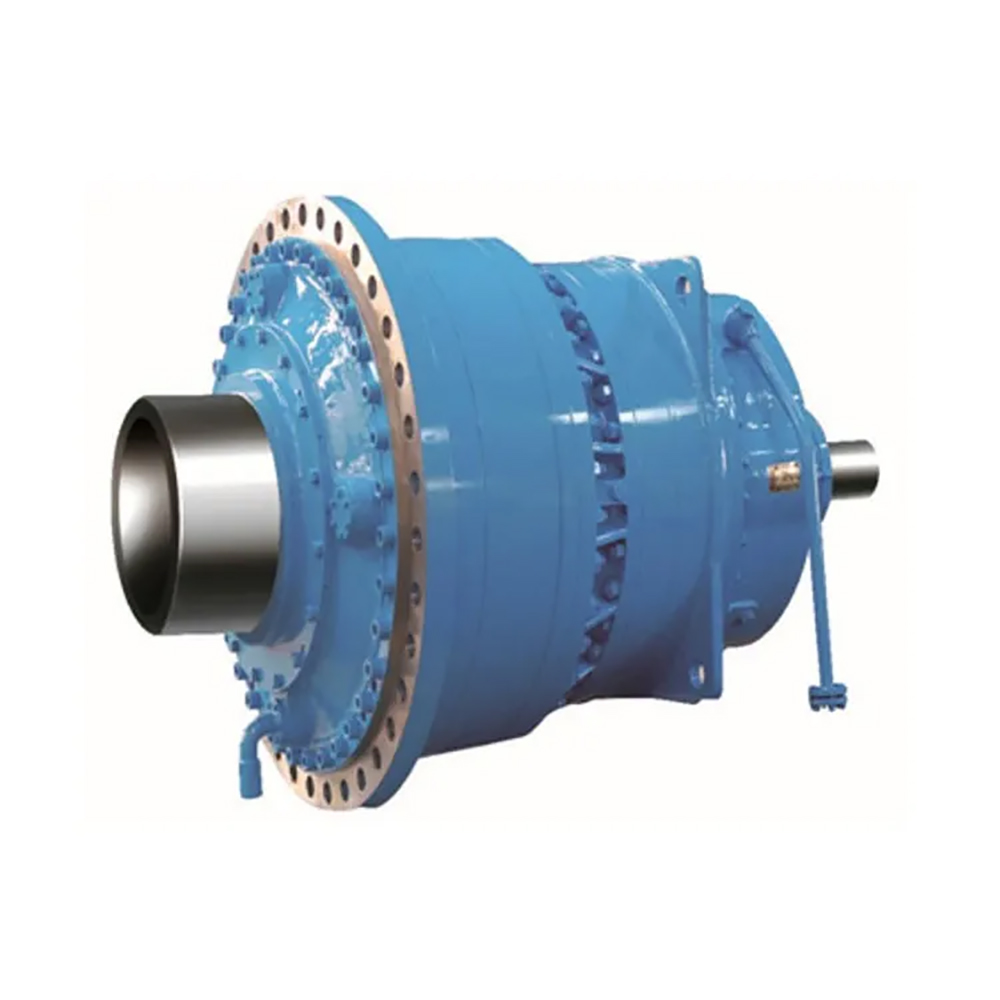

Planetary Gearboxes: Representing Efficiency and Precision
Planetary gearboxes are highly efficient, able to withstand more complex working conditions and provide excellent output in tight spaces. By design, the planetary gearbox's multiple planetary wheels are able to spread the load, which means it will perform more consistently in high-load or high-frequency applications. In addition, planetary gearboxes are highly accurate and have a wider range of applications, especially excelling in scenarios that require high precision and reliability.
How to choose the right gearbox for your application?
When selecting a gearbox, you need to consider a variety of factors for your application. For example, you need to assess the input power and speed of the conveyor, whether it needs to handle continuous high-speed input or reverse drive loads, and so on. At the same time, make sure the gearbox you select will be able to meet the equipment requirements in terms of size and weight. It is also vital to understand the load carrying capacity, operating characteristics and maintenance requirements of different gearbox types.
Conclusion
By gaining an in-depth understanding of the characteristics of spur gearboxes and planetary gearboxes, you can better select the right gearbox for your equipment. Whether you are looking for a cost-effective spur gearbox or a high-performance planetary gearbox, making the right choice will greatly enhance the efficiency of your work and the performance of your equipment.
